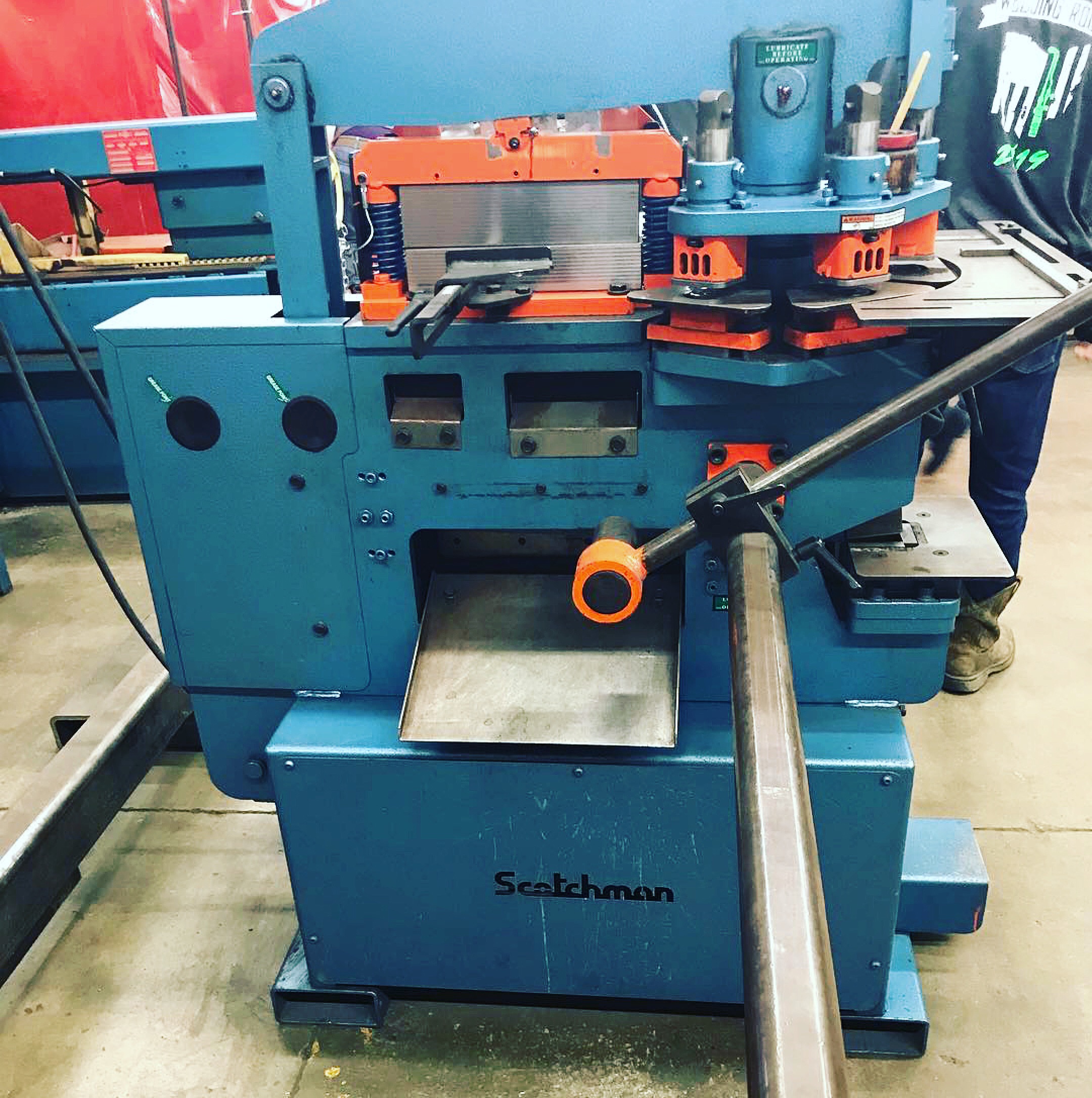

50 Ton Ironworker

3 Station Turret Punch

Watch Video

5014-ET

Select Option

Description
Standard Features
Capacities & Specs

Single Operator, 7 Stations
50 Ton punch station with 3-station revolving turret
Keyed punch ram for safety
2" Die holder (one for each punch station - qty 3)
Punch nut with wrench & stripper (one for each punch station - qty 3)
One round punch & die: max. diameter 1"
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear
Flat bar shear with 4-way reversible blade
Rectangle notcher
Tool table work area
Slug receptacle
Electrical box supplied with emergency palm button & lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Punching Capacity	50 ton 1-1/4" in 1/2" 13/16" in 3/4"	45 mt 32 mm in 12 mm 20 mm in 19 mm
Special Tooling	2-1/4" Max. Dia.	57 mm Max. Dia.
Throat Depth	4"	102 mm
Flat Bar Shear	14" Length 3/4" x 4" 1/2" x 8" 3/8" x 10" 1/4" x 14"	356 mm 19 mm x 102 mm 12 mm x 203 mm 10 mm x 254 mm 6 mm x 356 mm
Saber Blade (optional)	1/2" x 10" 3/8" x 12"	12 mm x 254 mm 10 mm x 305 mm
Angle Shear 90 degree	4" x 4" x 3/8"	102 mm x 102 mm x 10 mm
Angle Shear 45 degree	2" x 2" x 1/4"	51 mm x 51 mm x 6 mm
Brake 8"	25 ton	23 mt
Brake 12"	25 ton	23 mt
Open End Brake	Max. 1/4" x 3" [Flat or Angle Iron]	6 mm x 76 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8"	63 mm x 76 mm x 8 mm 63 mm x 70 mm x 10 mm
90 degree V-Notcher	6" x 6" x 1/8" 3" x 3" x 1/4"	152 mm x 152 mm x 3 mm 76 mm x 76 mm x 6 mm
Unistrut Shear	Samples Required
Rod Shear Round (max.) Square (max.)	5 Cavity - 1/4" to 1" 1 Cavity - 1/4" to 3/4"	6 mm to 25 mm 6 mm to 19 mm
Square Tube Shear	1/2" to 1" 12 gauge	12 mm to 25 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12 mm, 19 mm, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Strokes per Minute in Light Material	34 spm [Punch Station]	1/4" stroke
Strokes per Minute in Heavy Material	14 spm [Punch Station]	3/4" stroke
Hydraulics	2,350 psi	162 bar
Motor Standard	3 hp 208/230/460, 380/575v; 3 ph	2.24 kW
Motor Optional	5 hp 220v, 1 ph	3.73 kW
Dimensions	L: 48-1/4" W: 23-1/2" H: 70-1/4"	L: 122.5 cm W: 60 cm H: 178.5 cm
Shipping Weight (may vary)	1,640 lbs	744 kg

Own It For As Low As

^$398 / month

lease-purchase financing available

REQUEST Pricing

Optional Tooling

Snap Ring Removal Tool

Easily remove the snap rings on our punches with this tool. (For style #20 punches)

View

Pipe Notcher

Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"

View

8” Brake

Delivers 25-tons of force to bend and shape metals up to 8 inches wide. 2" Lower V-die.

View

Picket Tool

The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.

View

Unistrut Shear

Tool will shear Unistrut without distortion

View

Jog Control

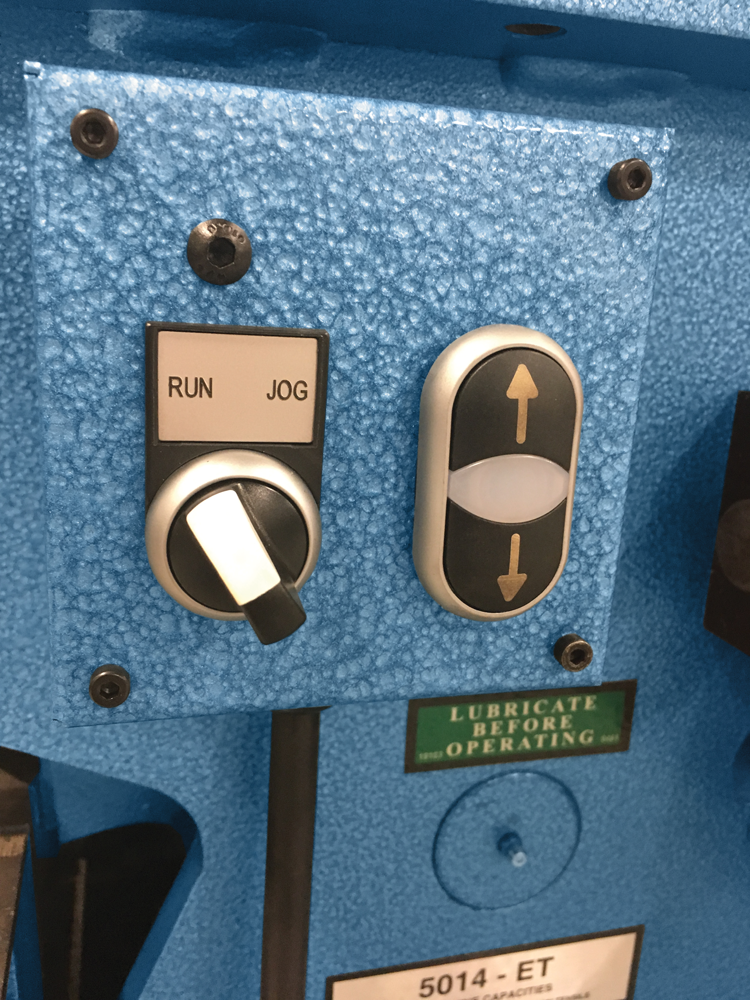

This manual motor jog control allows the operator to 'jog' the machine to a certain position so specific adjustments or precise functions can be made.

View

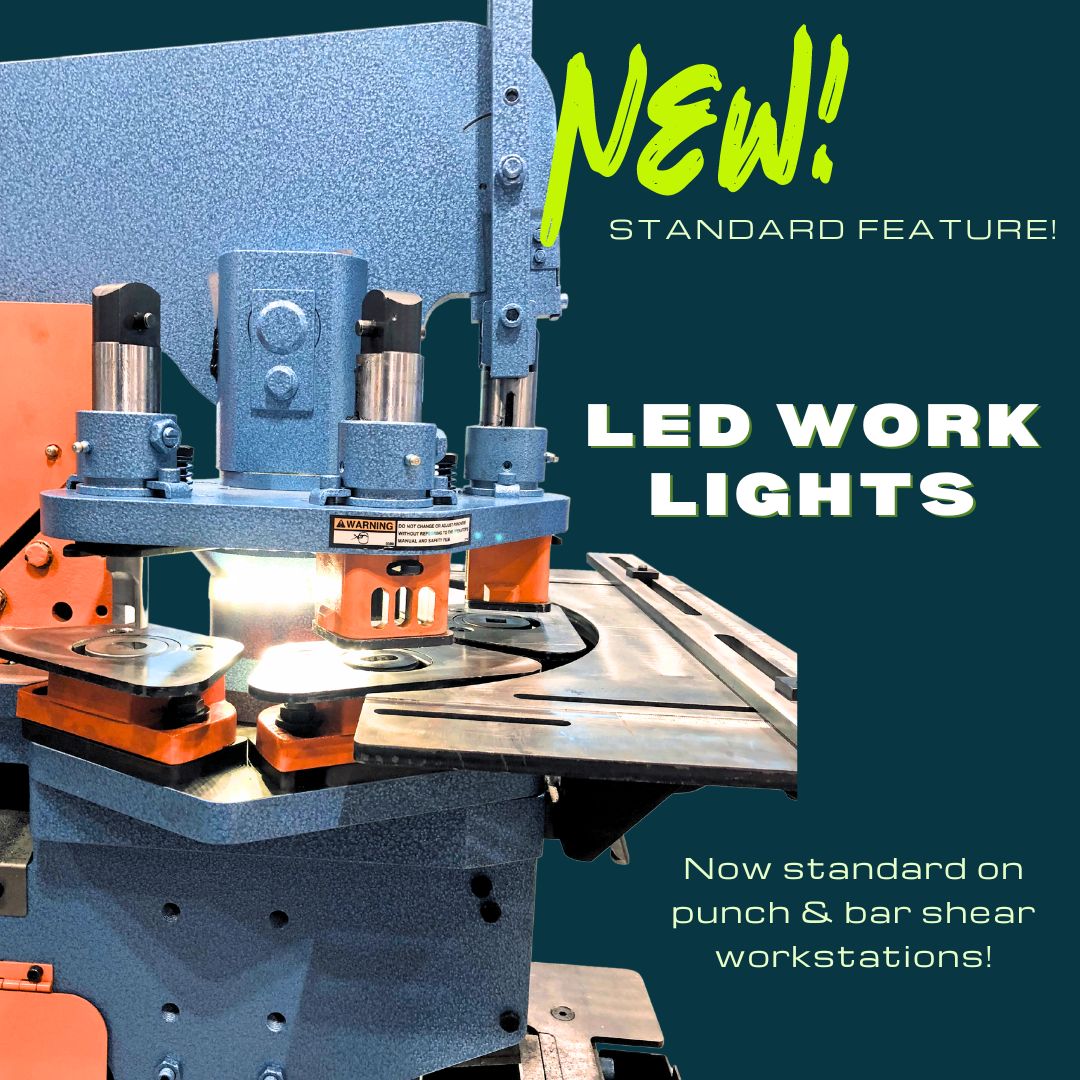

LED Lights

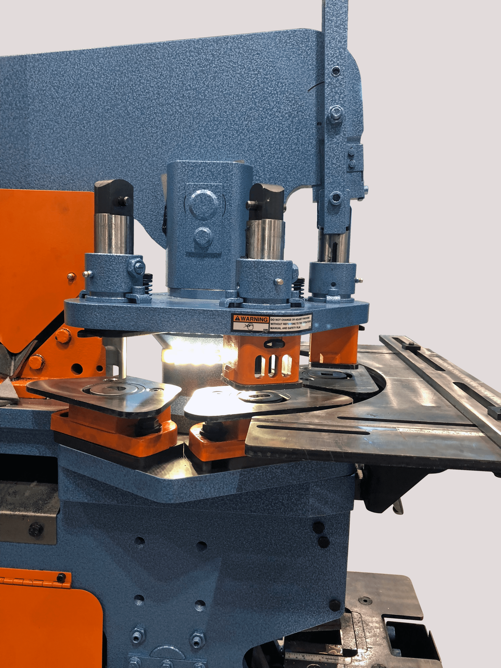

The LED Light Package for the 5014-ET is installed on the punch & shear stations to make sure you can always see what you are working on. This is a factory installed option only.

View

Weld Coupon Bender

This tool will is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.

View

Tool Table Extension With Punch & Die Storage Drawer

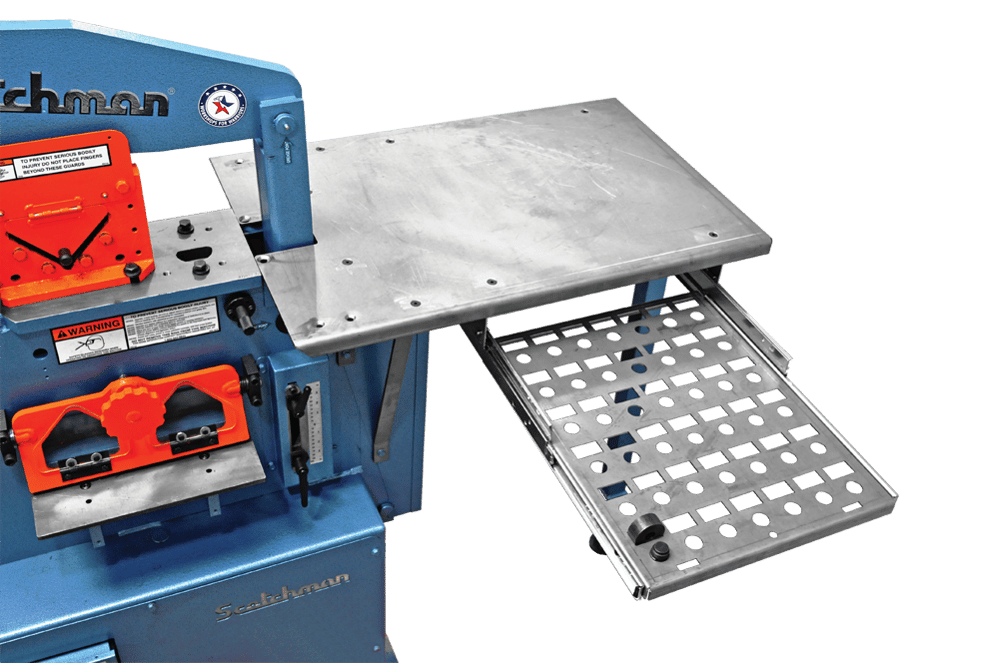

Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.

View

Custom Built Tool examples

Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.

View

24" x 5' Conveyor with Angle Iron Support

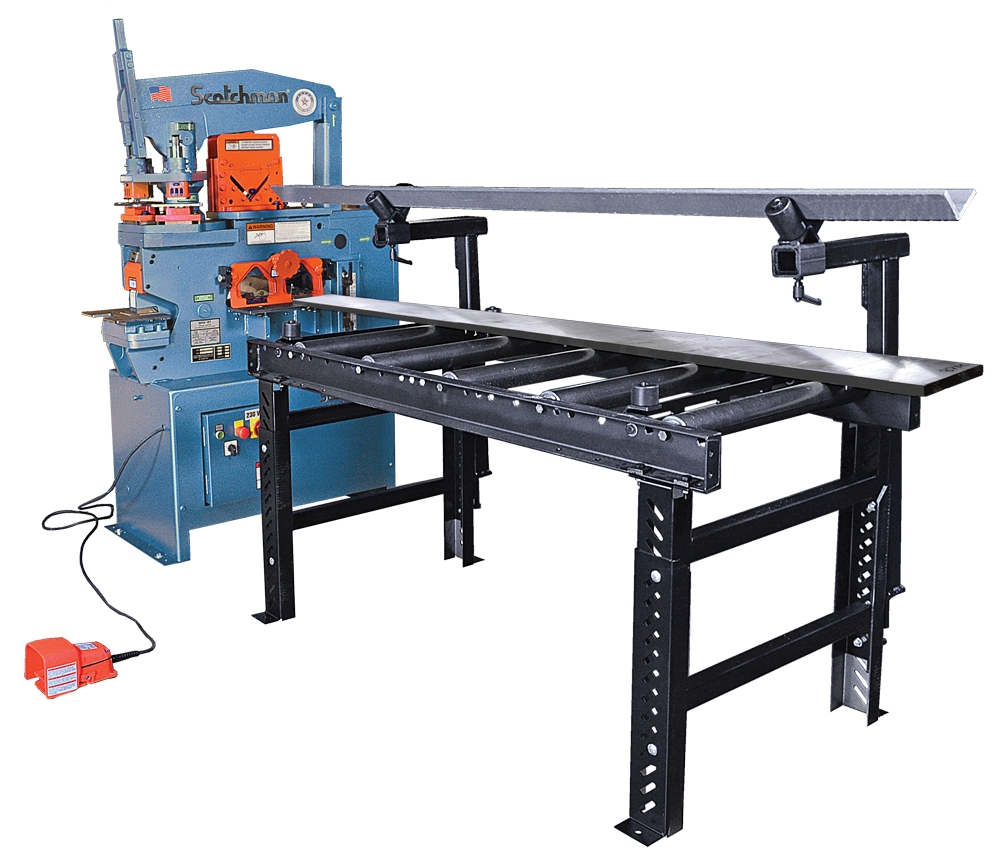

24" x 5' Conveyor with Angle Iron Support attached to 5014-ET

View

Brake Table with Scale and Squaring Arm

Adding this option to the 12" brake tool increases precision & accuracy. Length Gauge w/Scale is sold separately. (For 12" brake only)

View

Laser Light - Bar Shear

Easily see the cut mark & Increases precision at the bar shear.

View

Shear Table with Miter Fence

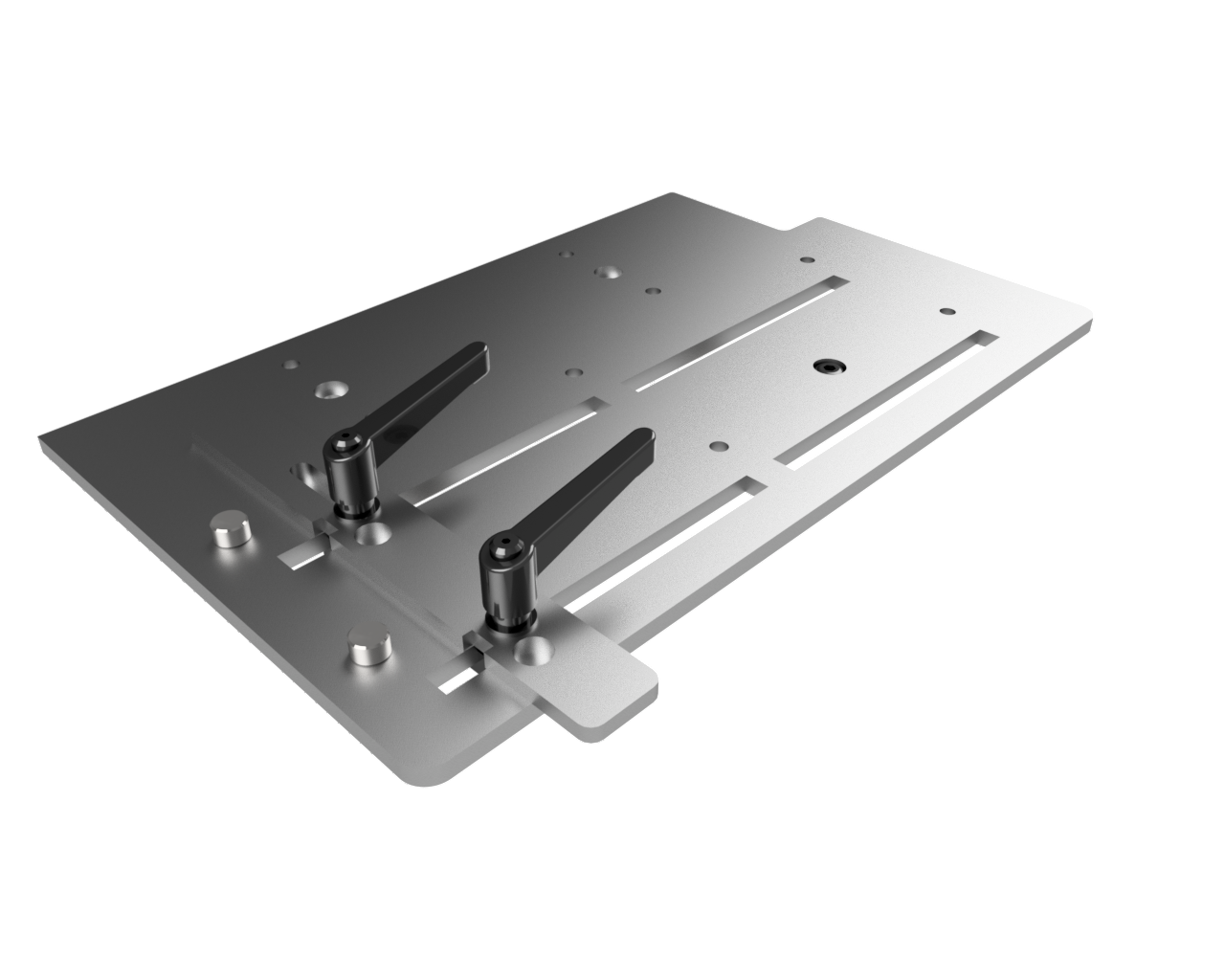

Allows for accurate and repeatable cuts at the bar shear station.

View

48" Back Gauge

Make consistent & repeatable cuts an the bar shear using a Back Gauge tool. (Available in Manual or Electric versions)

View

Punch Gauging Table with Fence & Scale

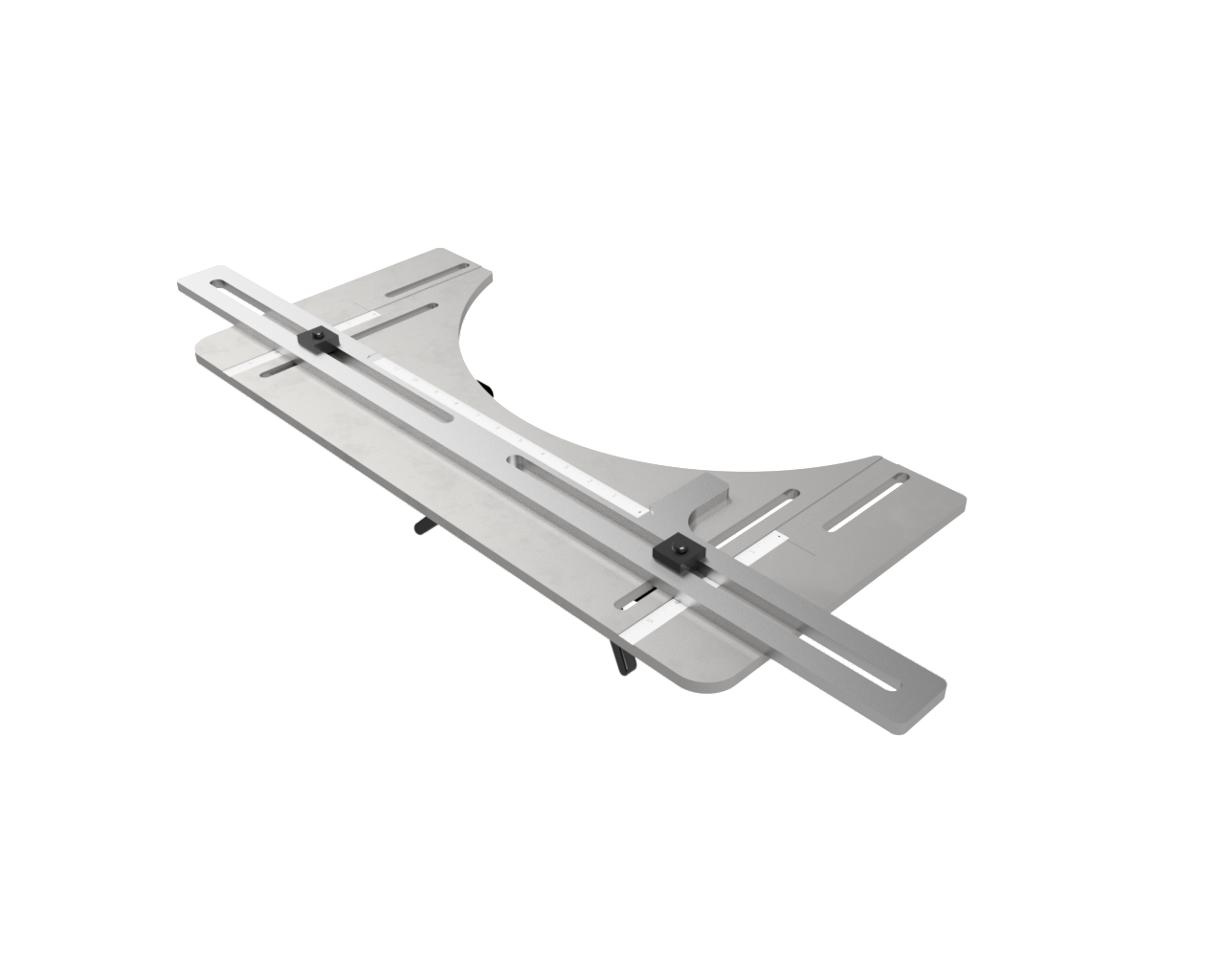

Allows for accurate and repeatable hole punching. Mounts to the punch station of a 5014-ET.

View

Square Tube Shear

Can shear 1/2" to 1" square tube, up to 14 gauge.

View

Rod Shear

This tool has 5 cavities for round rod: 1/4" to 1", and 1 cavity for square rod: 1/4" to 3/4"

View

90° V-Notcher

Can cut a 6" x 6" V-notch in 1/8" thick material, and a 3" x 3" V-notch in 1/4" material. For tool table work station only.

View

Angle Shear Miter Guide

45-degree & 22-degree miter guide for angle iron shear.

View

Open End Brake

Max 1/4" x 3" Flat or Angle Iron. *use on tool table station only

View

12" Brake

Delivers 25-tons of force to bend and shape metals up to 12 inches wide. 2" Lower V-die.

View

6" Brake

4-way lower V-die, 6 inch length.

View

Economy Punch & Die Package

12 Round Punch & Die Sets, plus Snap Ring Removal Tool - Style #20 (available in 16th, 32nd OR metric sizes)

View

Deluxe Punch & Die Package

Punch & Die Variety Package, plus Snap Ring Removal Tool - Style #20. Includes: Round, Square & Oval sets

View

Brake Length Gauge with Scale

Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.

View

Custom tooling

Not Sure?

Here are some factors to consider
when selecting an ironworker
that works for you.

We’re Here to Help!

Scotchman Industries

5014-ET

Visit this product here: https://www.scotchman.com/ironworker/view/5014-et

Description

STD Features

Single Operator, 7 Stations
50 Ton punch station with 3-station revolving turret
Keyed punch ram for safety
2" Die holder (one for each punch station - qty 3)
Punch nut with wrench & stripper (one for each punch station - qty 3)
One round punch & die: max. diameter 1"
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear
Flat bar shear with 4-way reversible blade
Rectangle notcher
Tool table work area
Slug receptacle
Electrical box supplied with emergency palm button & lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Optional Tooling:

Snap Ring Removal-PF45, 50C & 50T

Pipe Notcher - All IW Models

8" Brake - PF45, 50C & 50T

Picket tool

Unistrut Shear

Jog Control - 50-tons

LED Lights - 5014-ET

Weld Coupon Bender - 50-ton

Tool Table Ext - 50-C & 50-T

SPECIAL Custom Tooling

24" x 5' Conveyor with Angle Iron Support - 50C & 50T

Brake Table w/Scale & Squaring Arm - PF45, 50C & 50T

Laser Light - Bar Shear - 50C & 50T

Shear Table with Miter Fence - 50C & 50T

48" Back Gauge

Punch Gauging Table with Fence & Scale - 50T

Square Tube Shear - PF45, 50C, 50T

Rod Shear-5 cavity 45-50ton

90° V-Notcher - PF45, 50C & 50T

Angle Shear Miter Guide

12" Brake - PF45, 50C & 50T

6" Brake - PF45, 50C & 50T

Econ P&D Package - PF45, 50C & 50T

Dlx P&D Pack - PF45, 50C, 50T

Brake Length Gauge w/Scale - ALL Models

Capacities & Specs

Punching Capacity	50 ton 1-1/4" in 1/2" 13/16" in 3/4"	45 mt 32 mm in 12 mm 20 mm in 19 mm
Special Tooling	2-1/4" Max. Dia.	57 mm Max. Dia.
Throat Depth	4"	102 mm
Flat Bar Shear	14" Length 3/4" x 4" 1/2" x 8" 3/8" x 10" 1/4" x 14"	356 mm 19 mm x 102 mm 12 mm x 203 mm 10 mm x 254 mm 6 mm x 356 mm
Saber Blade (optional)	1/2" x 10" 3/8" x 12"	12 mm x 254 mm 10 mm x 305 mm
Angle Shear 90 degree	4" x 4" x 3/8"	102 mm x 102 mm x 10 mm
Angle Shear 45 degree	2" x 2" x 1/4"	51 mm x 51 mm x 6 mm
Brake 8"	25 ton	23 mt
Brake 12"	25 ton	23 mt
Open End Brake	Max. 1/4" x 3" [Flat or Angle Iron]	6 mm x 76 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8"	63 mm x 76 mm x 8 mm 63 mm x 70 mm x 10 mm
90 degree V-Notcher	6" x 6" x 1/8" 3" x 3" x 1/4"	152 mm x 152 mm x 3 mm 76 mm x 76 mm x 6 mm
Unistrut Shear	Samples Required
Rod Shear Round (max.) Square (max.)	5 Cavity - 1/4" to 1" 1 Cavity - 1/4" to 3/4"	6 mm to 25 mm 6 mm to 19 mm
Square Tube Shear	1/2" to 1" 12 gauge	12 mm to 25 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12 mm, 19 mm, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Strokes per Minute in Light Material	34 spm [Punch Station]	1/4" stroke
Strokes per Minute in Heavy Material	14 spm [Punch Station]	3/4" stroke
Hydraulics	2,350 psi	162 bar
Motor Standard	3 hp 208/230/460, 380/575v; 3 ph	2.24 kW
Motor Optional	5 hp 220v, 1 ph	3.73 kW
Dimensions	L: 48-1/4" W: 23-1/2" H: 70-1/4"	L: 122.5 cm W: 60 cm H: 178.5 cm
Shipping Weight (may vary)	1,640 lbs	744 kg
