85 Ton Ironworker

Fully Integrated Dual Operator

Watch Video

DO8514-20M

Select Option

Description
Standard Features
Capacities & Specs

Dual Operator, 5 Stations
Dual operator allows for two operators to work at the same time at full capacity
85 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Tandem Hydraulic Pump
Two valves
Slug-less angle shear

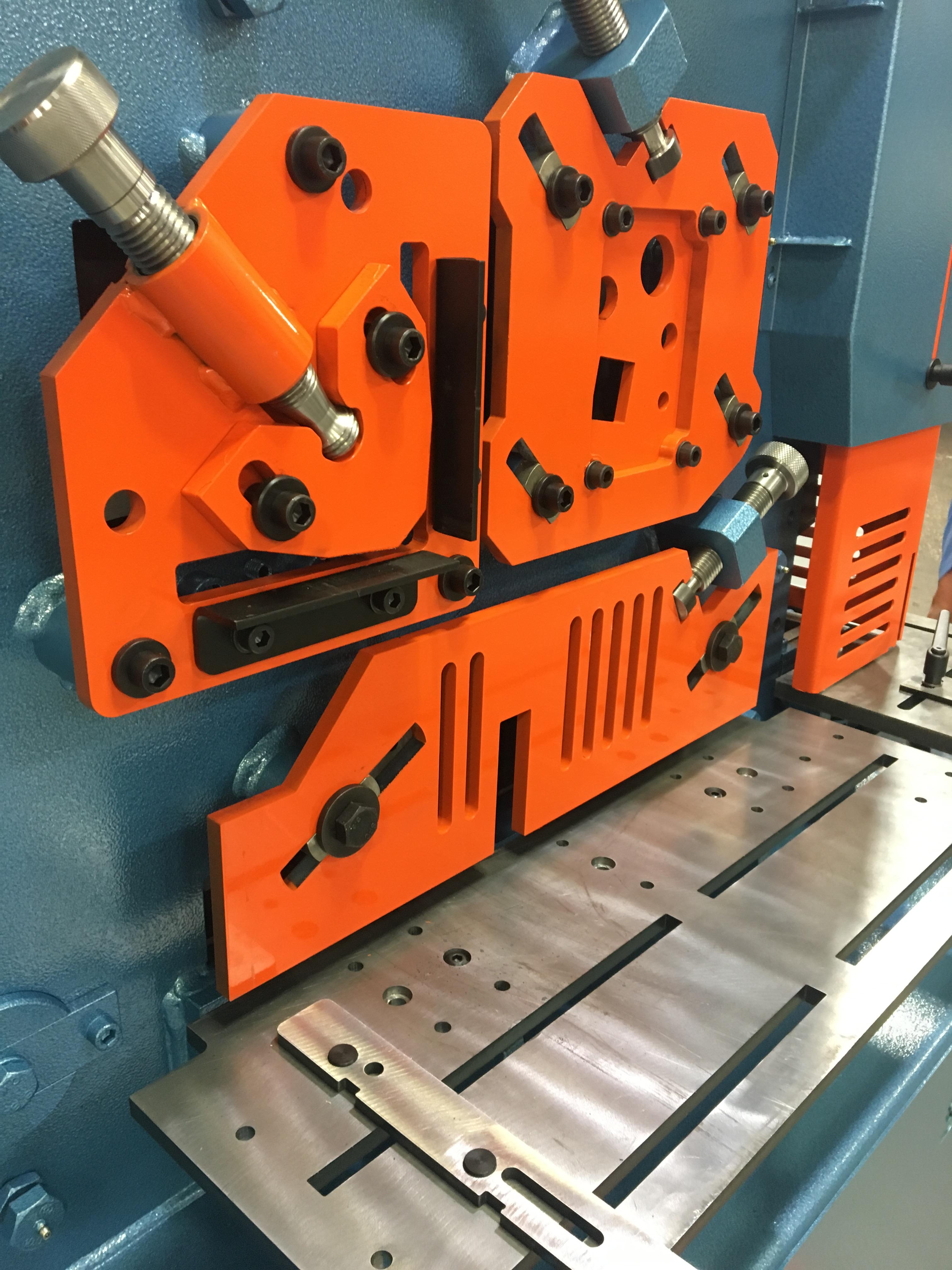

Rectangle notcher: can be converted to a V-notcher, 50 ton punch station, or open end brake
Flat bar shear
Shear table with miter fence
Rod shear
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Punching Capacity	85 ton 1-1/16" in 1"	77 mt 27 mm in 25 mm
Special Tooling	4" Max. Dia.	102 mm Max. Dia.
Throat Depth	14"	355 mm
Flat Bar Shear	20" Length 1" x 14" 3/4" x 20"	508 mm 25 mm x 355 mm 19 mm x 508 mm
Angle Shear 90 degree	6" x 6" x 1/2"	152 mm x 152 mm x 12 mm
Angle Shear 45 degree (w/Bar Shear)	4" x 4" x 1/2"	102 mm x 102 mm x 12 mm
Brake 12"	85 ton	77 mt
Brake 24"	85 ton	77 mt
Open End Brake (Notcher Station)	Max. 1/2" x 6" [Flat or Angle Iron]	12 mm x 152 mm
Open End Brake (Punch Station)	Max. 1/4" x 5" [Flat or Angle Iron]	6 mm x 127 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	2" x 4" x 1/2"	51 mm x 101 mm x 12 mm
90 degree V-Notcher (Punch Station)	6" x 6" x 5/16"	152 mm x 152 mm x 8 mm
90 degree V-Notcher (Notcher Station)	3" x 3" x 1/2"	76 mm x 76 mm x 12 mm
Punch Attachment (Notcher Station)	50 ton 1-1/4" in 1/2"	32 mm in 12 mm
Throat Depth w/Punch Attachment (Notcher Station)	4-7/16"	113 mm
Channel Shear	2" to 6"	51 mm to 152 mm
Unistrut Shear	Samples Required
Rod Shear Round (max.) Square (max.)	4 Cavity - 1/2", 3/4", 1", 1-1/2" 1 Cavity - 1-1/2"	12 mm, 19 mm, 25 mm, 38 mm 38 mm
Square Tube Shear	1/2" to 2" 12 gauge	12 mm to 51 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12 mm, 19 mm, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Offset Die Holder	Max. 40 ton	Max. 36 mt
Strokes per Minute in Light Material	45 spm [Punch Station]	1/4" Stroke
Strokes per Minute in Heavy Material	18 spm [Punch Station]	3/4" Stroke
Hydraulics	3,350/3,800 psi	231/262 bar
Motor Standard	10 hp 208/230/460, 380/575v; 3 ph	7.46 kW
Motor Optional	10 hp 220v, 1 ph	7.46 kW
Dimensions	L: 77-1/2" W: 32-1/4" H: 74"	L: 197 cm W: 82 cm H: 188 cm
Shipping Weight (may vary)	5,504 lbs	2,497 kg

Own It For As Low As

^$936 / month

lease-purchase financing available

REQUEST Pricing

Optional Tooling

Pipe Notcher

Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"

View

Picket Tool

The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.

View

Unistrut Shear

Tool will shear Unistrut without distortion

View

LED Lights

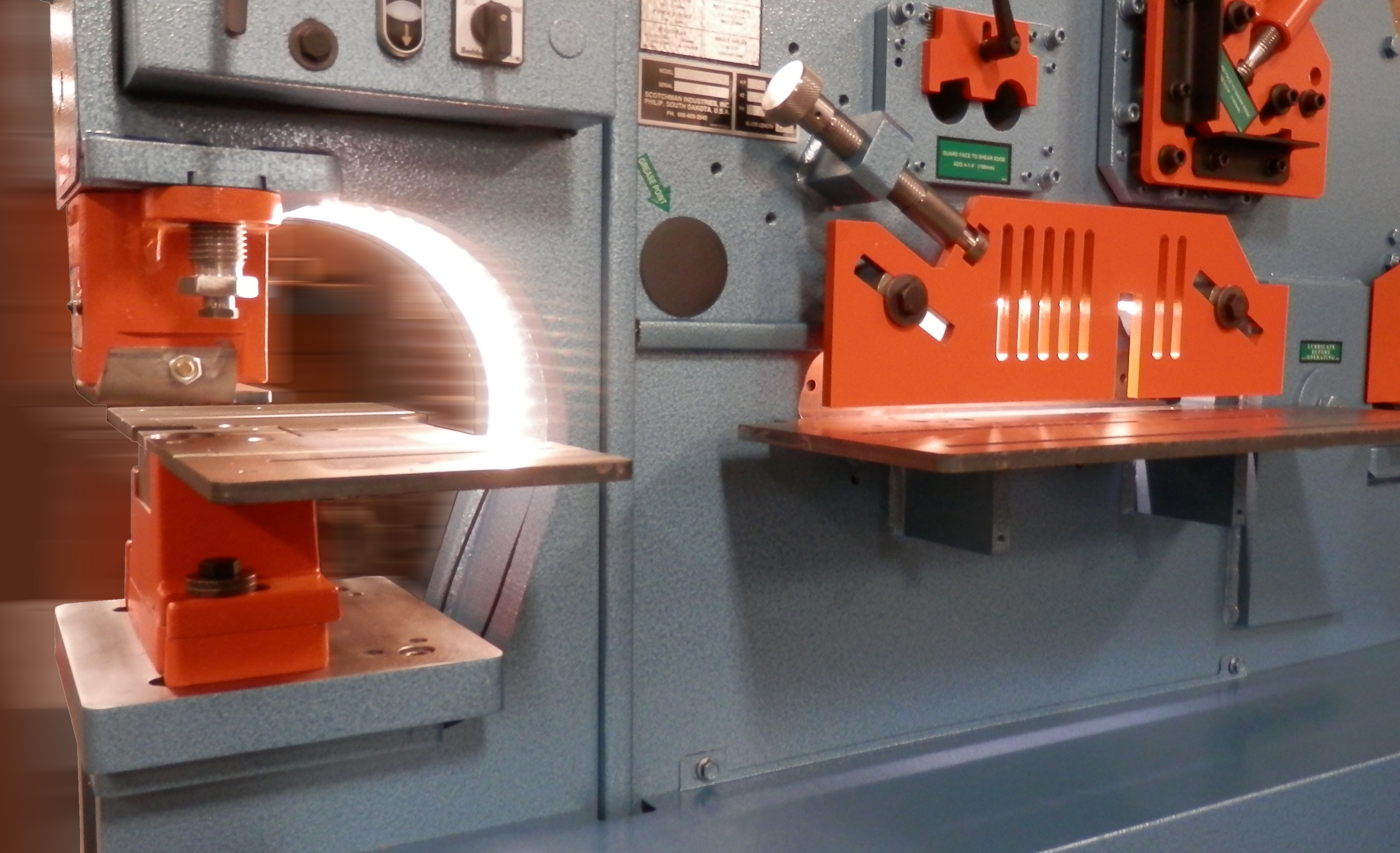

The LED Light Package is installed on the punch & shear stations to make sure you can always see what you are working on. This is a factory installed option only.

View

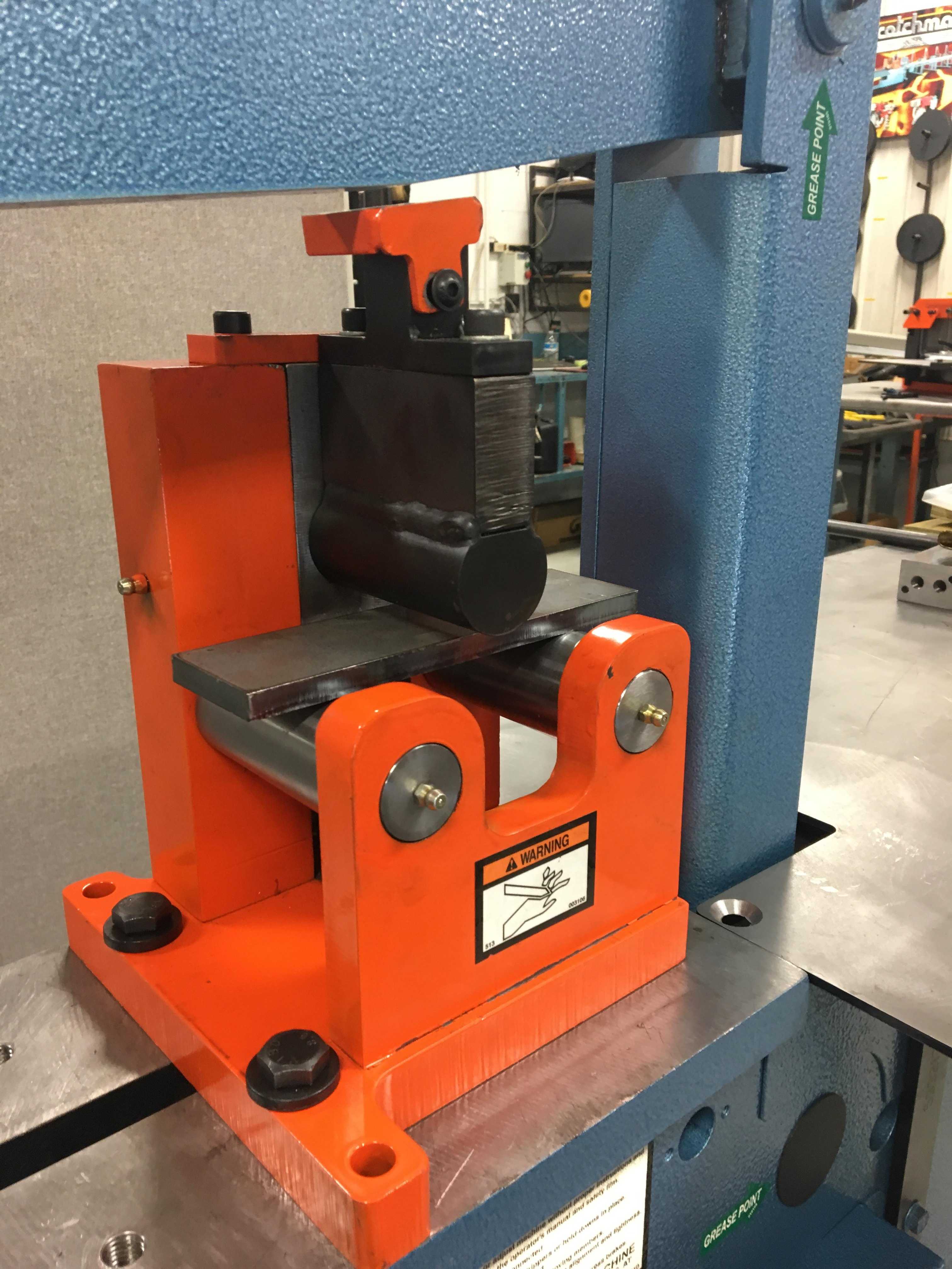

Weld Coupon Bender

This tool will is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.

View

Punch Table Extension

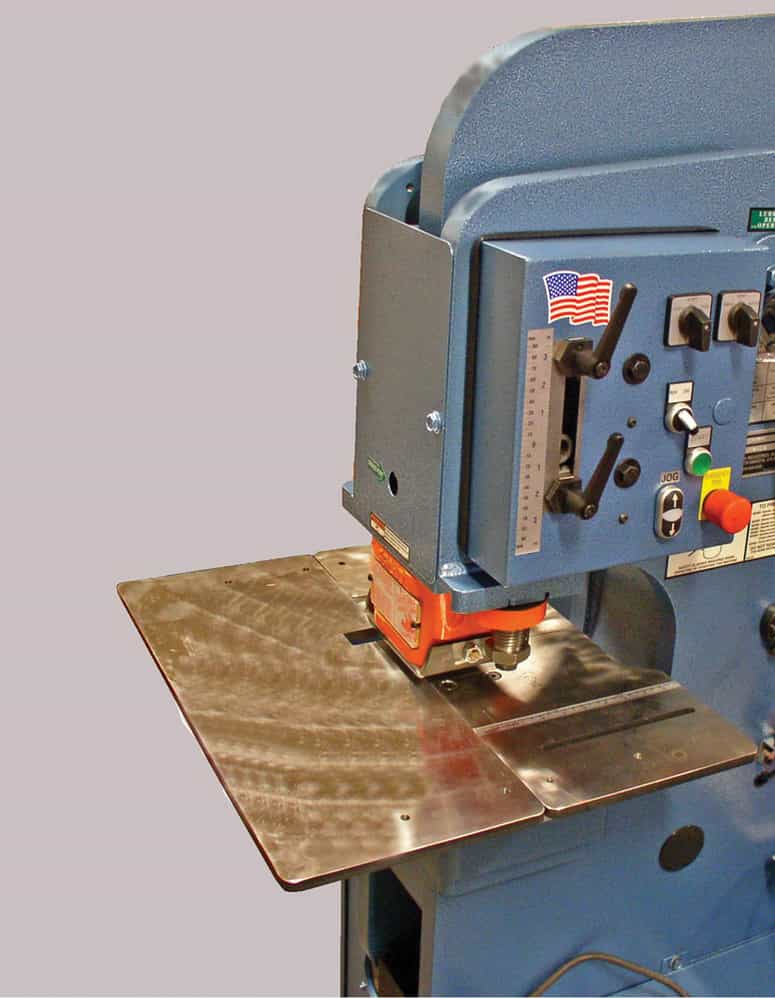

Increase the work area on the punch station with this extension table.

View

Custom Built Tool examples

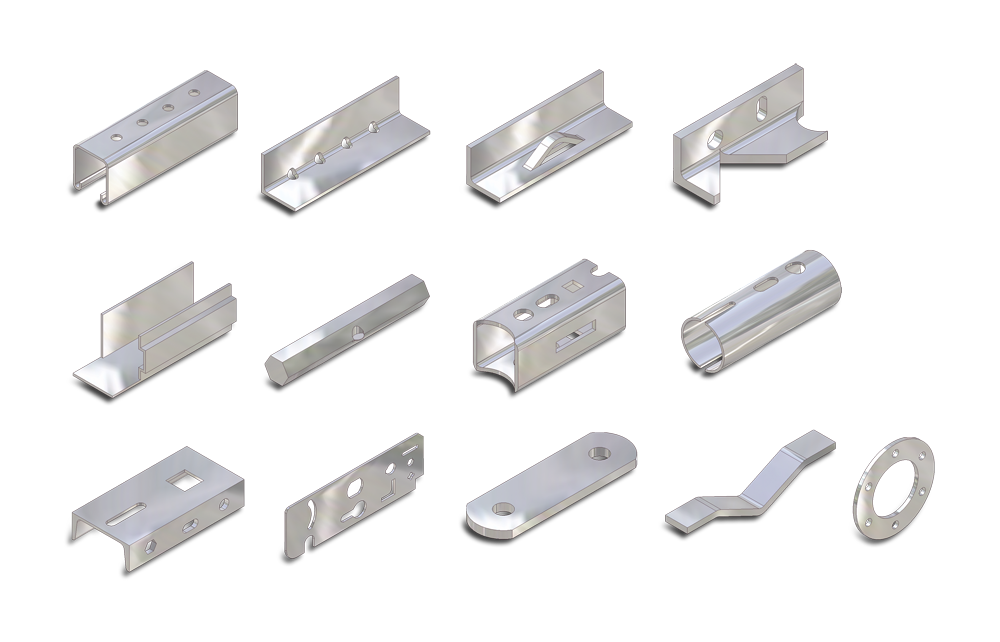

Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.

View

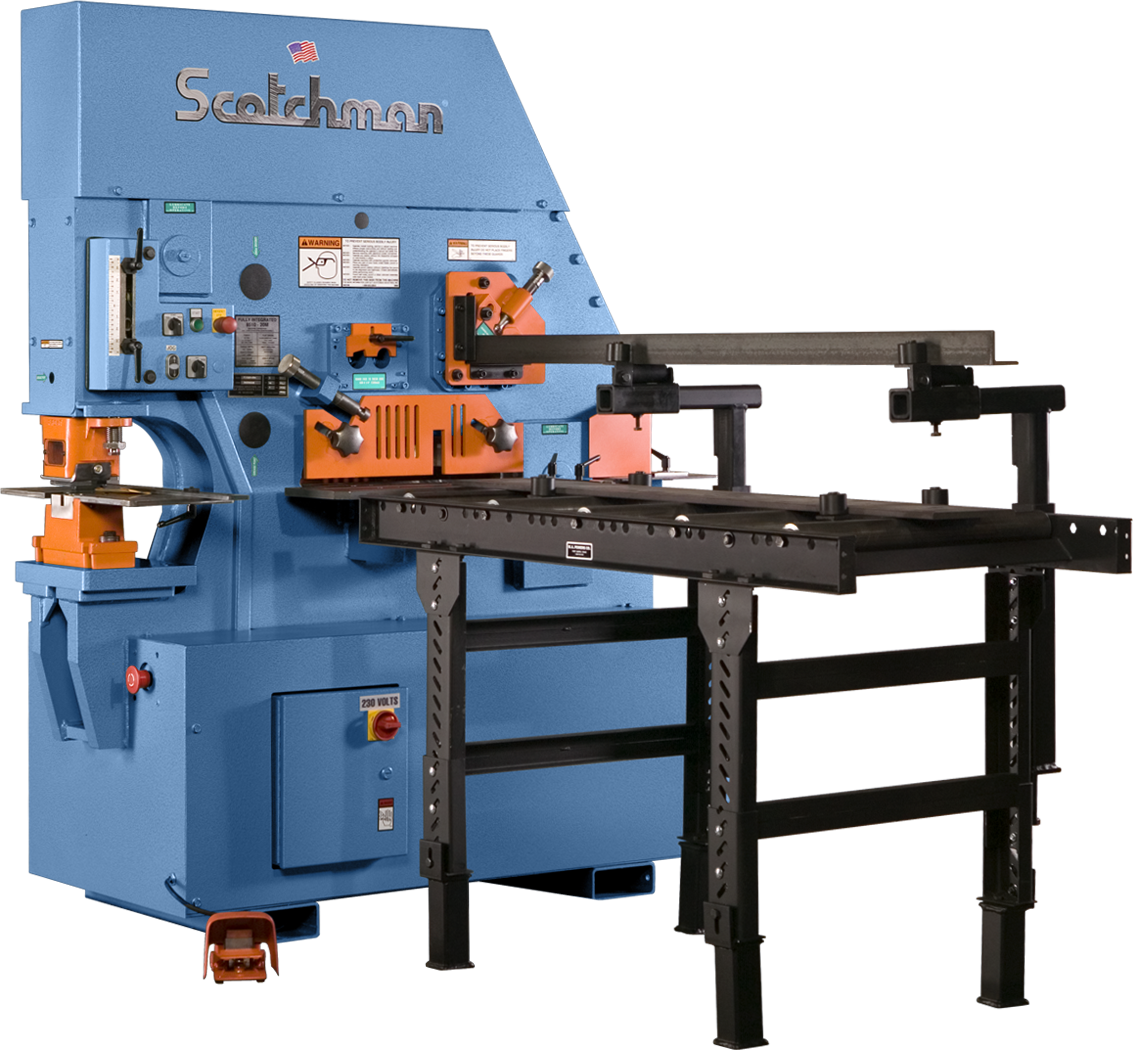

24" x 5' Roller Conveyor with Angle Iron Support

24" x 5' Roller Conveyor with Angle Iron Support attached to FI8510/20M

View

Open End Brake For Notcher Station

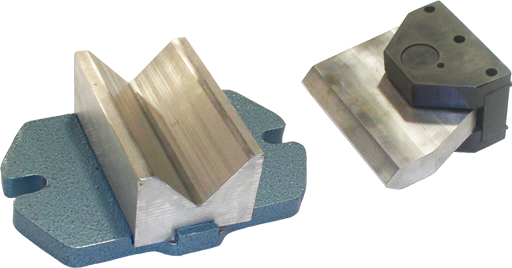

Convert the built-in notcher station into an open end brake.

View

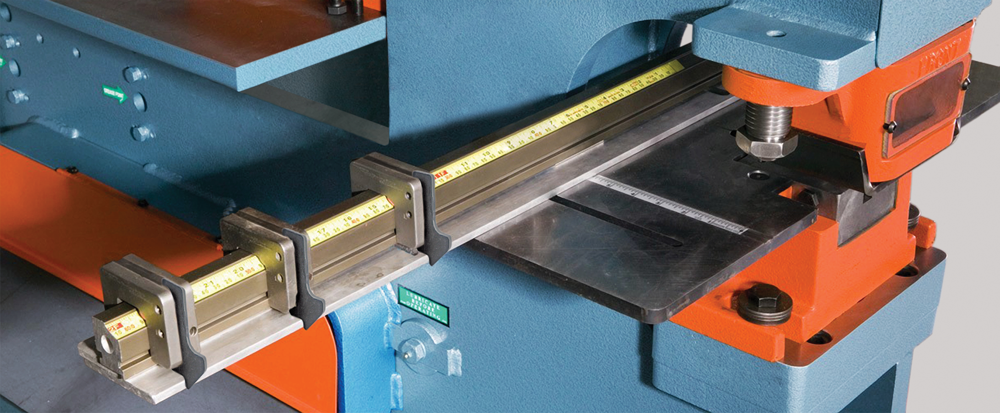

Multi-Loc Punch Gauging Table

Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.

View

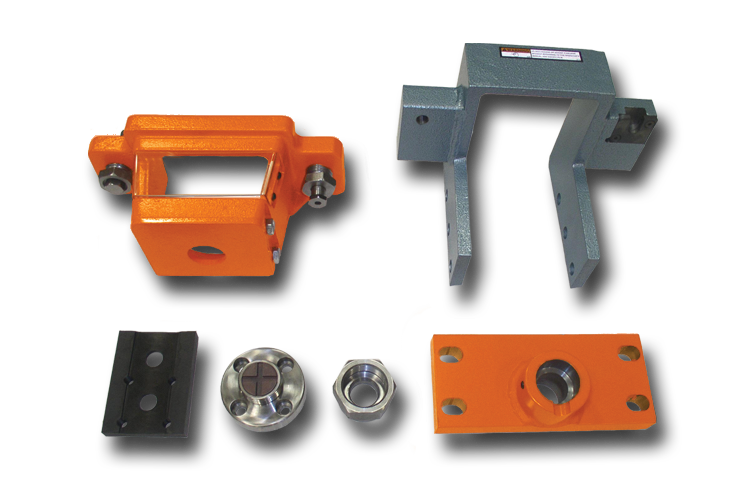

Optional Punch for Notcher Station

Convert the DO85 notcher station into a second punching station.

View

Brake Table with Scale & Squaring Arm

Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)

View

Offset Die Holder

Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)

View

Urethane Stripper

Aids in the removal of material being punched and minimizes deformation of material from the punch station.

View

Channel Shear Blades

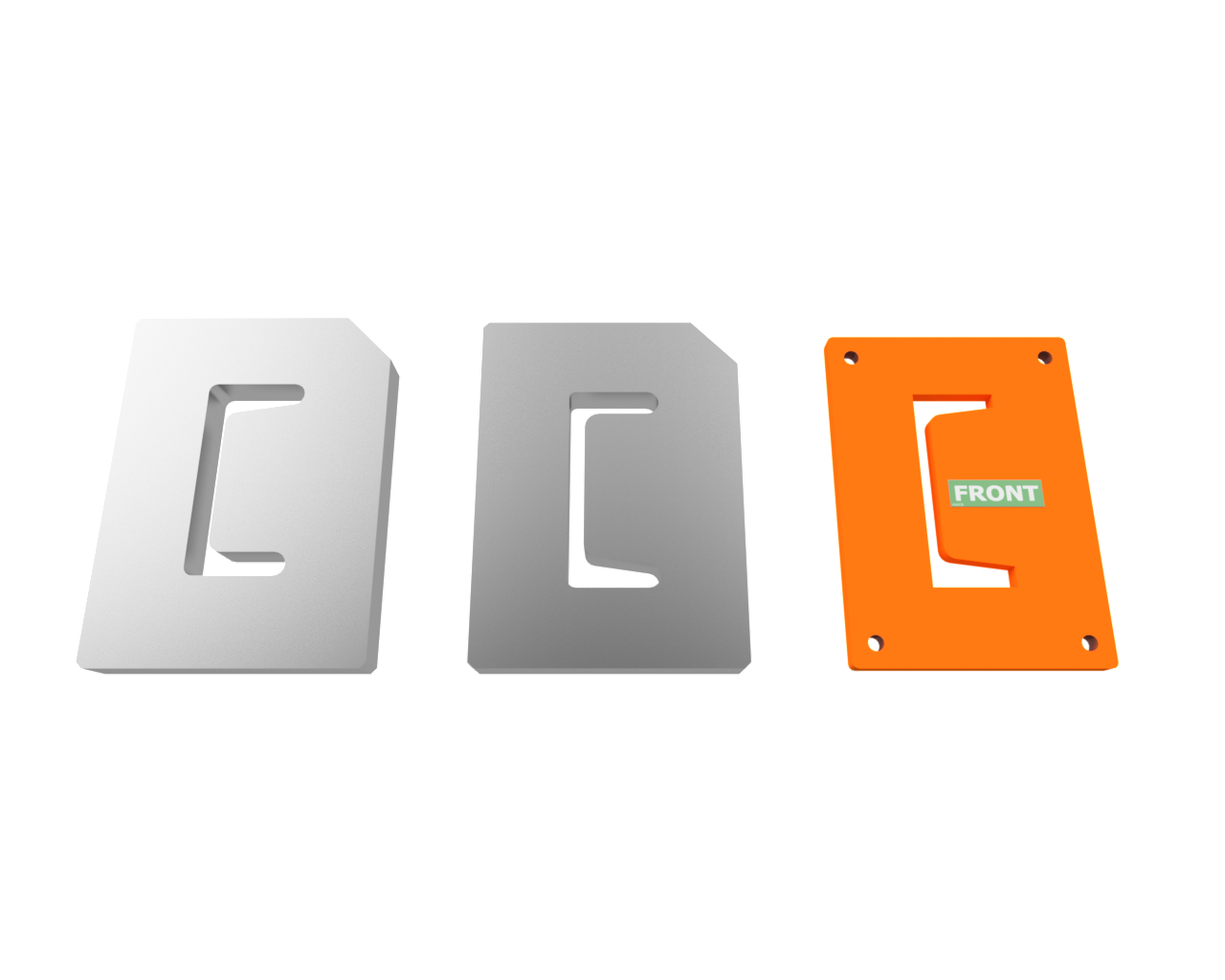

2", 3", 4", 5" & 6" blades available

View

12" Brake

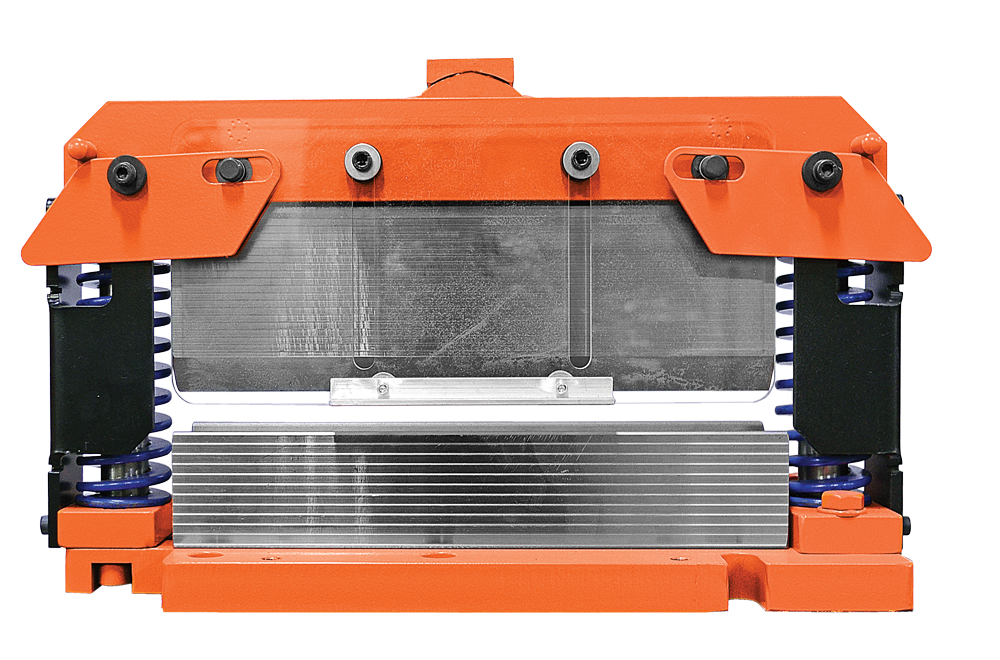

Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.

View

48" Back Gauge

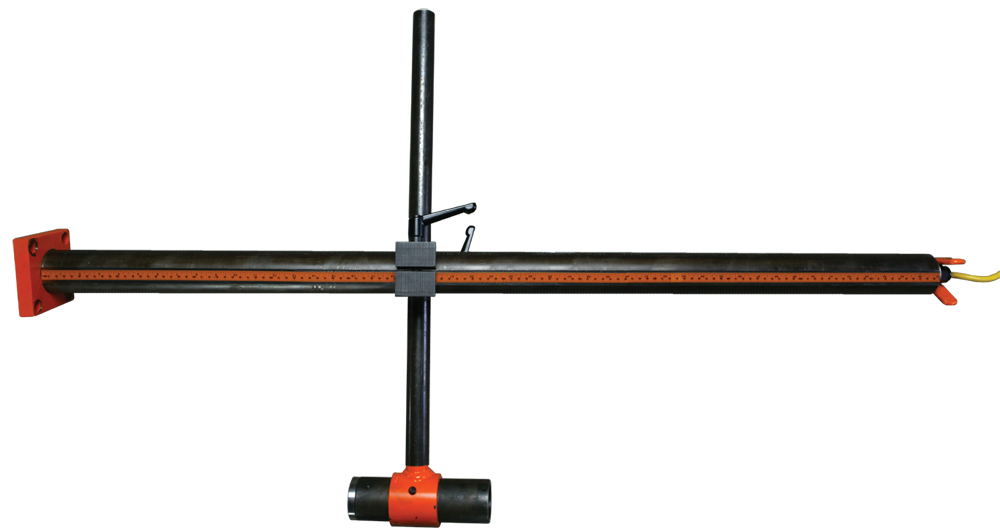

Make consistent & repeatable cuts an the bar shear using a Back Gauge tool. (Available in Manual or Electric versions)

View

90° V-Notcher

Convert the built-in square notcher station into a 90° V-Notcher = 3" x 3" x 1/2" capacity. Use in Vee Notcher in the punch station = 6" x 6" x 5/16" capacity.

View

Open End Brake

Max 1/4" x 5" Flat or Angle Iron *use on punch station only.

View

Economy Punch & Die Package

12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)

View

Deluxe Punch & Die Package

Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.

View

24" Brake

Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.

View

Square Tube Shear

Can shear 1/2" to 2" square tube, up to 14 gauge.

View

Custom tooling

Not Sure?

Here are some factors to consider
when selecting an ironworker
that works for you.

We’re Here to Help!

Scotchman Industries

DO85

Visit this product here: https://www.scotchman.com/ironworker/view/do85

Description

STD Features

Dual Operator, 5 Stations
Dual operator allows for two operators to work at the same time at full capacity
85 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Tandem Hydraulic Pump
Two valves
Slug-less angle shear
Rectangle notcher: can be converted to a V-notcher, 50 ton punch station, or open end brake
Flat bar shear
Shear table with miter fence
Rod shear
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Optional Tooling:

Pipe Notcher - All IW Models

Picket tool

Unistrut Shear

LED Lights - FI85 & DO85

Weld Coupon Bender - FI85 & DO85

Punch Table Ext. - XL models

SPECIAL Custom Tooling

24" x 5' conveyor w/Angle Iron Support - FI85 & DO85

Open End Brake for Notcher Station - DO85

Multi-Loc Punch Gauging Table - 36" & 85" extensions - XL Models

Optional Punch for Notcher Station - DO85

Brake Table w/Scale & Squaring Arm - XL models - XL Models - 12" & 24" brakes

Offset Die Holder - XL Models

Urethane Stripper - XL Models

Channel Shear Blades - DO85

12" Brake - XL Models

48" Back Gauge

90° V-Notcher - DO85

Open End Brake - XL Models

Econ P&D Package - XL Models

24" Brake - XL Models

Square Tube Shear - XL Models

Capacities & Specs

Punching Capacity	85 ton 1-1/16" in 1"	77 mt 27 mm in 25 mm
Special Tooling	4" Max. Dia.	102 mm Max. Dia.
Throat Depth	14"	355 mm
Flat Bar Shear	20" Length 1" x 14" 3/4" x 20"	508 mm 25 mm x 355 mm 19 mm x 508 mm
Angle Shear 90 degree	6" x 6" x 1/2"	152 mm x 152 mm x 12 mm
Angle Shear 45 degree (w/Bar Shear)	4" x 4" x 1/2"	102 mm x 102 mm x 12 mm
Brake 12"	85 ton	77 mt
Brake 24"	85 ton	77 mt
Open End Brake (Notcher Station)	Max. 1/2" x 6" [Flat or Angle Iron]	12 mm x 152 mm
Open End Brake (Punch Station)	Max. 1/4" x 5" [Flat or Angle Iron]	6 mm x 127 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	2" x 4" x 1/2"	51 mm x 101 mm x 12 mm
90 degree V-Notcher (Punch Station)	6" x 6" x 5/16"	152 mm x 152 mm x 8 mm
90 degree V-Notcher (Notcher Station)	3" x 3" x 1/2"	76 mm x 76 mm x 12 mm
Punch Attachment (Notcher Station)	50 ton 1-1/4" in 1/2"	32 mm in 12 mm
Throat Depth w/Punch Attachment (Notcher Station)	4-7/16"	113 mm
Channel Shear	2" to 6"	51 mm to 152 mm
Unistrut Shear	Samples Required
Rod Shear Round (max.) Square (max.)	4 Cavity - 1/2", 3/4", 1", 1-1/2" 1 Cavity - 1-1/2"	12 mm, 19 mm, 25 mm, 38 mm 38 mm
Square Tube Shear	1/2" to 2" 12 gauge	12 mm to 51 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12 mm, 19 mm, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Offset Die Holder	Max. 40 ton	Max. 36 mt
Strokes per Minute in Light Material	45 spm [Punch Station]	1/4" Stroke
Strokes per Minute in Heavy Material	18 spm [Punch Station]	3/4" Stroke
Hydraulics	3,350/3,800 psi	231/262 bar
Motor Standard	10 hp 208/230/460, 380/575v; 3 ph	7.46 kW
Motor Optional	10 hp 220v, 1 ph	7.46 kW
Dimensions	L: 77-1/2" W: 32-1/4" H: 74"	L: 197 cm W: 82 cm H: 188 cm
Shipping Weight (may vary)	5,504 lbs	2,497 kg
