Tooling for Pipe Notchers

Pipe Notcher Accessories

Below is what we offer for options & accessories for
our line of abrasive grinder notchers.
Accessories work on models: AL100U-01 & 02 and AL150 & AL150-HS.

Mandrels

17 mandrel sizes available to ensure a gap-free fit.

Mandrels for Abrasive Grinder Notchers-Scotchman-ALMI 1
Pipe Tube Decimal Size AL100U-01 & 02
Item #
AL150/AL150-HS
Item #
Price
AL100U-01 & 02
Price
AL150/AL150-HS
1/2" 0.840 A042.21.3 A043.21.3 $140.00 $155.00
1.000 1.000 A042.26 A043.26 $140.00 $155.00
3/4" 1.060 A042.26.9 A043.26.9 $140.00 $155.00
1.250 1.250 A042.32 A043.32 $180.00 $200.00
1" 1.330 A042.33.7 A043.33.7 $180.00 $200.00
1.500 1.500 A042.38 A043.38 $185.00 $220.00
1-1/4" 1.660 A042.42.4 A043.42.4 $205.00 $235.00
1.750 1.750 A042.44 A043.44 $205.00 $235.00
1-1/2" 1.900 A042.48.3 A043.48.3 $220.00 $250.00
2.000 2.000 A042.50 A043.50 $220.00 $250.00
2" 2.375 A042.60.3 A043.60.3 $250.00 $285.00
2.500 2.500 A042.63.5 A043.63.5 $305.00 $365.00
2-1/2" 2.875 A042.73.1 A043.73.1 $305.00 $365.00
3.000 3.000 A042.76.1 A043.76.1 $315.00 $380.00
3" 3.500 A043.88.9 $400.00
3.500 3.500 A043.88.9 $400.00
3-1/2" 4.000 A043.101.6 $410.00
4" 1.500 A043.114.3 $440.00

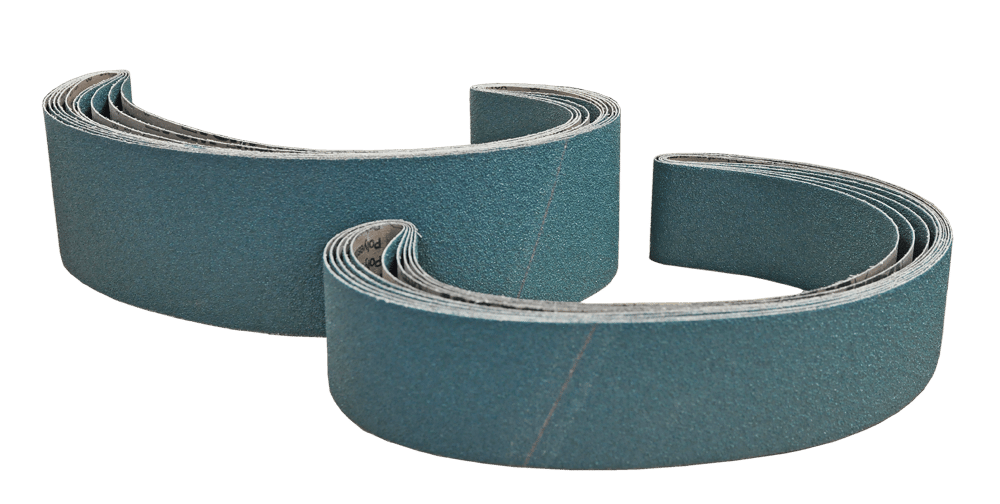

Grinding Belts

Belts for Abrasive Grinder/Notchers

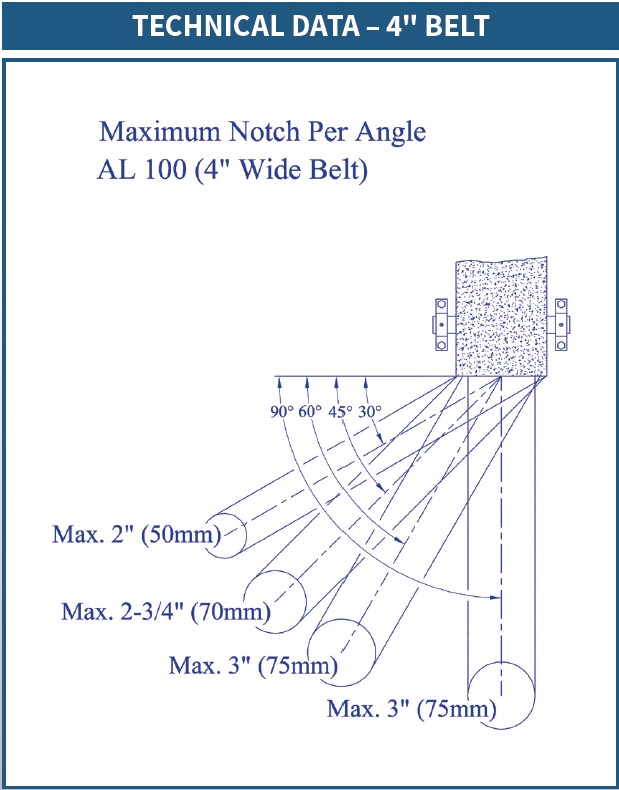

*AL100U models use a 4" belt (technical data)

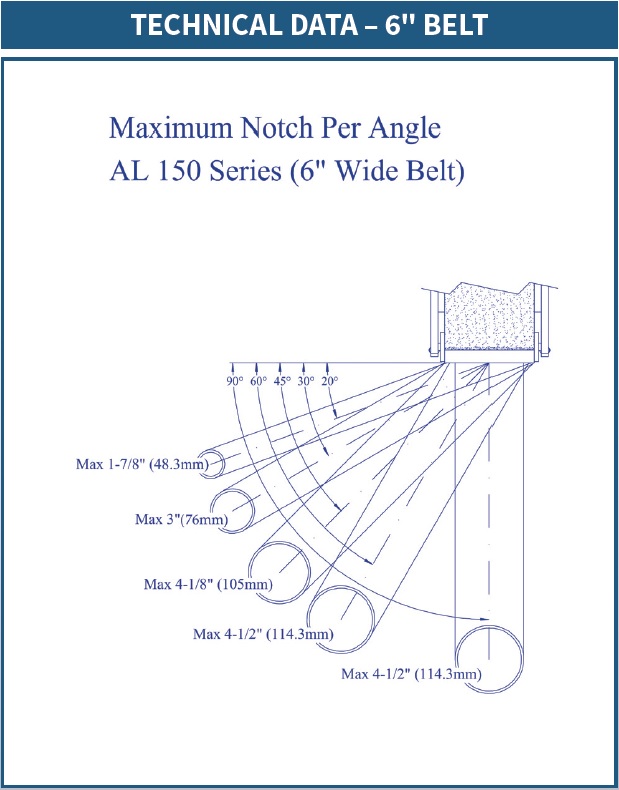

*AL150 models use a 6" belt (technical data)

Abrasive Belts-Scotchman-ALMI
Item Description Length/Grit Qty. Item # Price
Rigid Belt for 3/4"
& Larger Diameter
4" x 78-3/4"
36 GRIT
1 Box
(10 Belts)
A044.00001 $260.00
Flexible Belt for 3/4"
& Smaller Diameter
4" x 77-1/2"
36 GRIT
1 Box
(10 Belts)
A044.00003 $285.00
Rigid Belt for 3/4"
& Larger Diameter
6" x 78-3/4"
36 GRIT
1 Box
(10 Belts)
A044.00002 $360.00
Flexible Belt for 3/4"
& Smaller Diameter
6" x 77-1/2"
36 GRIT
1 Box
(10 Belts)
A044.00004 $365.00

*Machines with these serial numbers↓ require a 4" x 77" 36 GRIT belt.
*S/N: 0001000-0001300
*S/N: 9701301-9701650
*S/N: 9801651-9801700

Tooling & Accessories

Some additional accessory options are available. Expand to see these options by clicking on the model from the list below.

AL100U-01
optional
Abrasive Belts (4")
Rigid Belts for 3/4" & larger diameter. Flex Belts for 3/4" & smaller diameter.
View
optional
Mandrels
17 Mandrel sizes available to ensure a correct gap-free fit
View
optional
Back Gauge
Attachment used to control depth of notch for repeatable and accurate part lengths. 4 ft. max working length.
View
AL100U-02
optional
Abrasive Belts (4")
Rigid Belts for 3/4" & larger diameter. Flex Belts for 3/4" & smaller diameter.
View
optional
Mandrels
17 Mandrel sizes available to ensure a correct gap-free fit
View
optional
Back Gauge
Attachment used to control depth of notch for repeatable and accurate part lengths. 4 ft. max working length.
View
AL150
optional
Abrasive Belts (6")
Rigid Belts for 3/4" & larger diameter. Flex Belts for 3/4" & smaller diameter.
View
optional
Mandrels
17 Mandrel sizes available to ensure a correct gap-free fit
View
optional
Back Gauge
Attachment used to control depth of notch for repeatable and accurate part lengths. 4 ft. max working length.
View
AL150-HS
optional
Abrasive Belts (6")
Rigid Belts for 3/4" & larger diameter. Flex Belts for 3/4" & smaller diameter.
View
optional
Mandrels
17 Mandrel sizes available to ensure a correct gap-free fit
View
optional
Back Gauge
Attachment used to control depth of notch for repeatable and accurate part lengths. 4 ft. max working length.
View
