Products > Saws > SU-280 G

SU-280 G

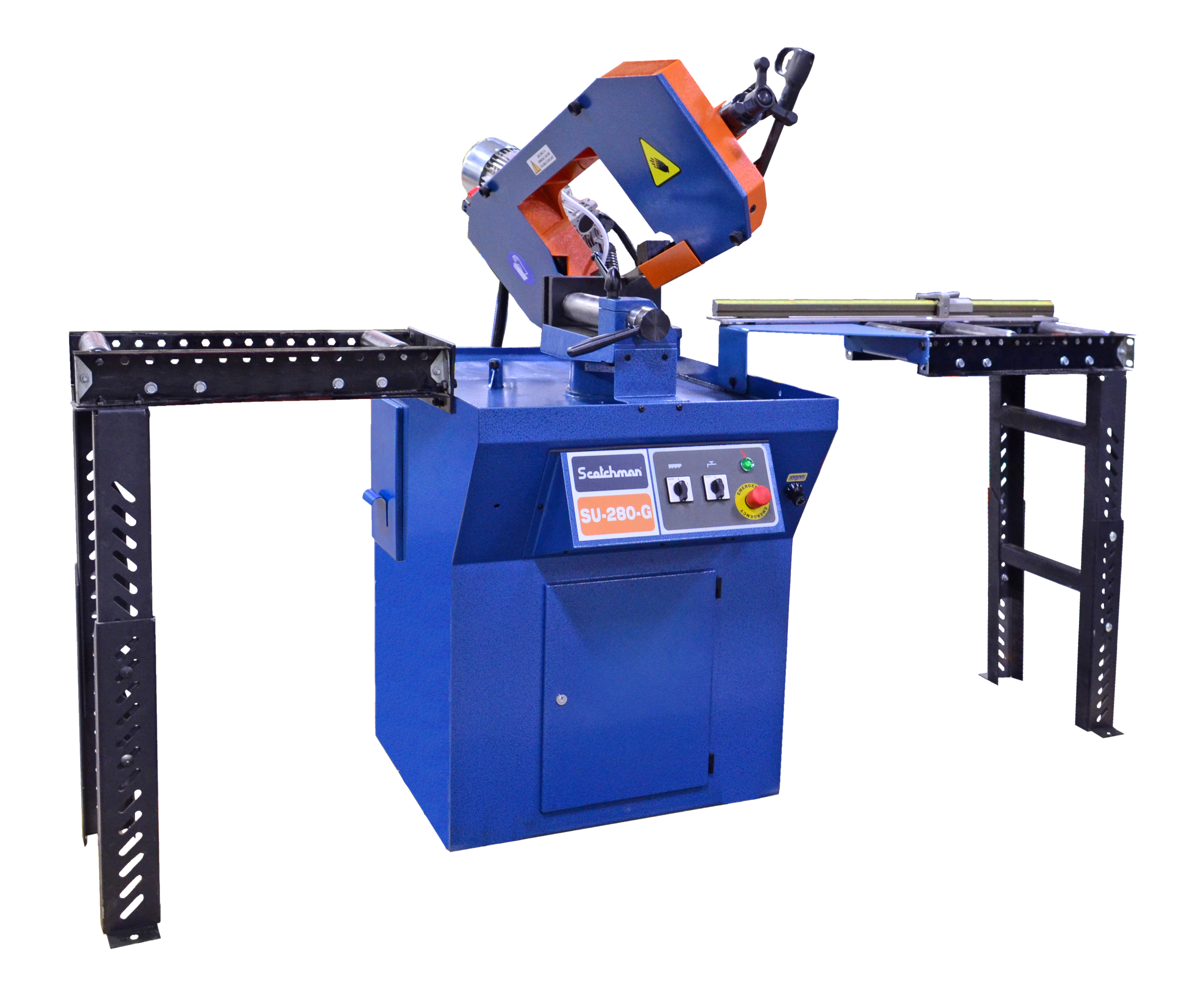

The SU-280 G is a scaled-down but rugged horizontal band saw that can easily cut through round material up to 8" diameter.

SU-280 G

The SU-280 G is a scaled-down but rugged horizontal band saw that can easily cut through round material up to 8" diameter.

Own It For As Low As

$252 / month

lease-purchase financing available

SU-280 G

DescriptionOpen

This Utility band saw makes cutting metal effortless. The SU-280 G combines the cutting of a traditional band saw with the flexibility and accuracy of a cold saw. For larger material that requires a bandsaw, this scaled-down but rugged horizontal band saw can easily cut through round material up to 8-inch diameter and features a swing head that can miter 60 degrees right of 90, giving you a 30-degree cut part without material movement.

The SU280 G bandsaw also features a metered feed rate allowing for quick and effortless cuts without operator assistance! It's the perfect saw for any fabricating shop and is built with the durability and quality you expect from a Scotchman; plus it's backed by our outstanding 3-year warranty.

Standard FeaturesOpen
  • Quick action locking vise
  • Miter capability 60° right of 90°∟
  • Blade trigger switch
  • Blade tension gauge
  • Gravity feed with adjustable down-feed pressure
  • Carbide blade guides with roller supports
  • Re-circulating coolant system
  • Band door interlocks
  • One band saw blade
  • One gallon coolant
  • Meets CE standards
  • Warranty: Three years on parts
  • Made in Spain

Capacities & SpecsOpen
Maximum Cutting Capacities
TUBING

Round
Square
Rectangle
90 Degree

8"
8"
11" x 7-3/4"
45 Degree

7"
6-1/4"
7" x 6-1/4"
60 Degree

4-1/4"
4"
4-1/4" x 4"
Blade Length 1" x 96.5"
Two Cutting Speeds
(3-phase machines)
131/262 FPM
One Cutting Speed
(1-phase machines)
196 FPM
Motor Rate 1.3 hp 1 kW
Motor Options
(Factory Wired)
Must Specify:
230/460v, 3 ph
220v, 1 ph

Width 33-1/2" 85 cm
Depth 55" 140 cm
Height 69" 175 cm
Shipping Weight
(may vary)
650 lbs 295 kg

Optional Tooling

5' or 10' Open Roller ConveyorOpen
5' or 10' long Open Roller Conveyor.Conveyors can be coupled together to lengths up to 25'.

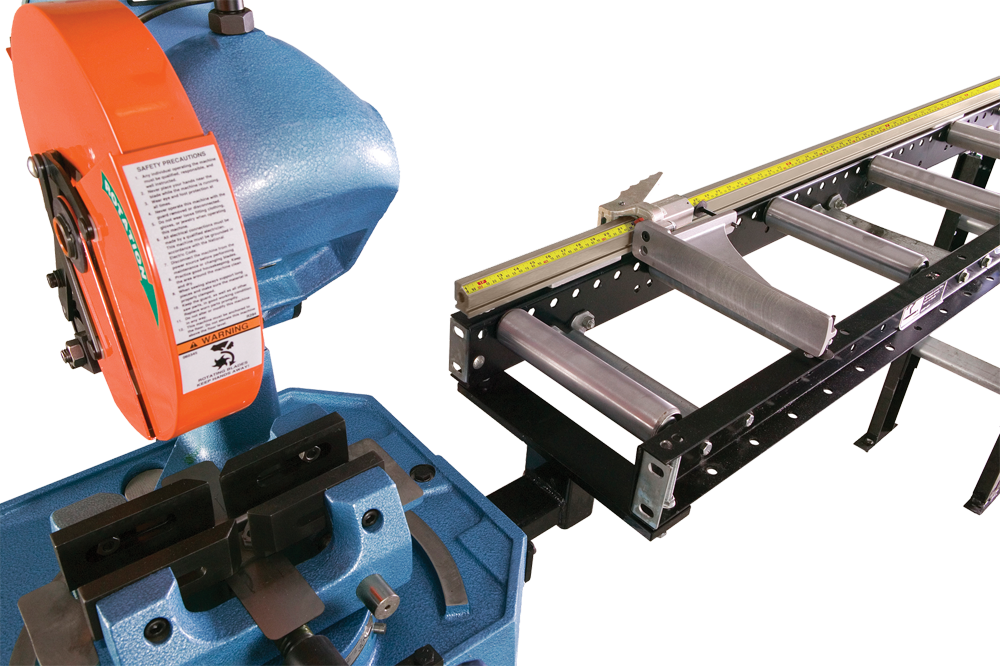

60" or 120" Material Stop Roller Conveyor Mounted with Manual Measuring Quick-Loc SystemOpen
Manual measuring device on conveyor. Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.

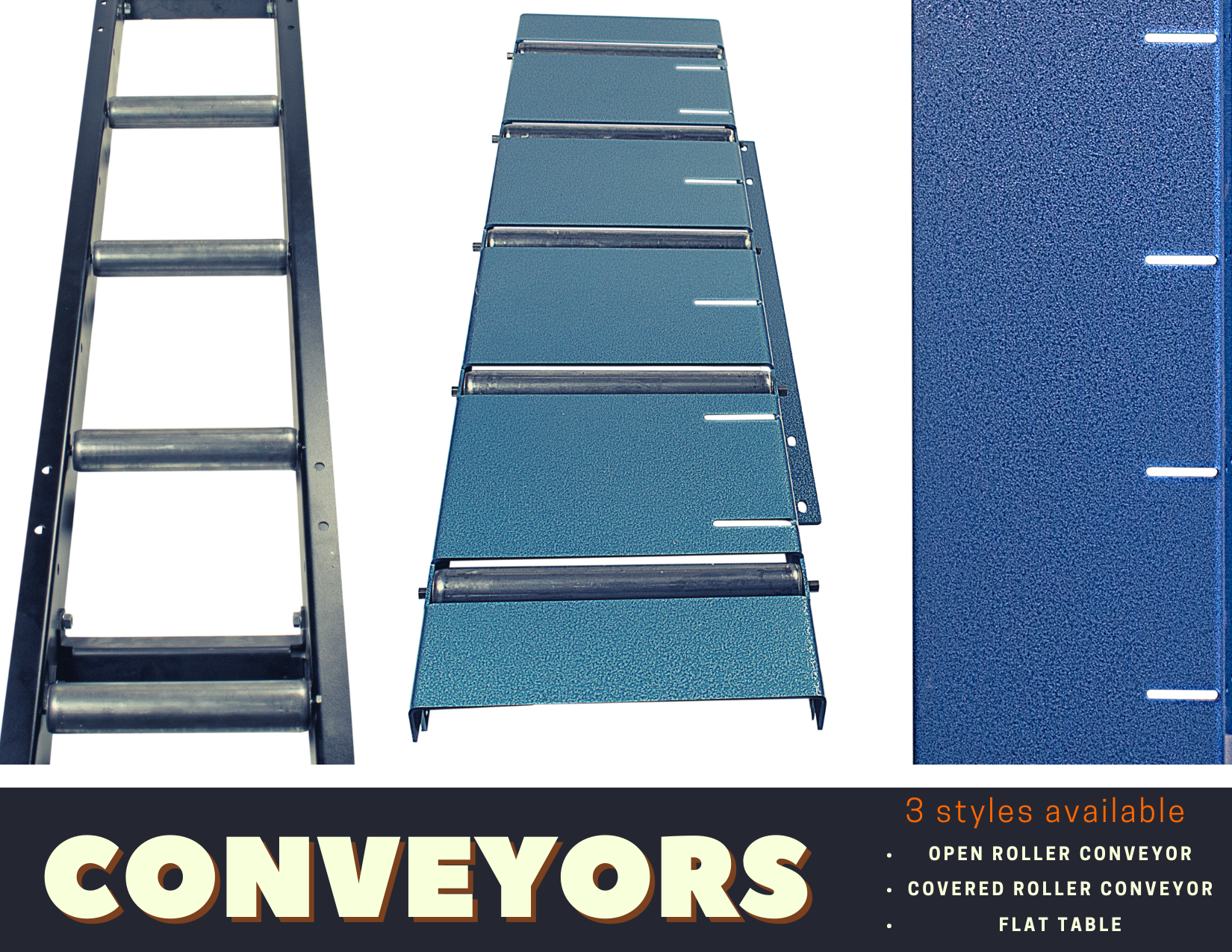

5' to 32' Material Supply TrackOpen
Infeed & outfeed conveyors are available in different styles: Open Roller conveyor, Covered Roller Conveyor, or Covered flat table

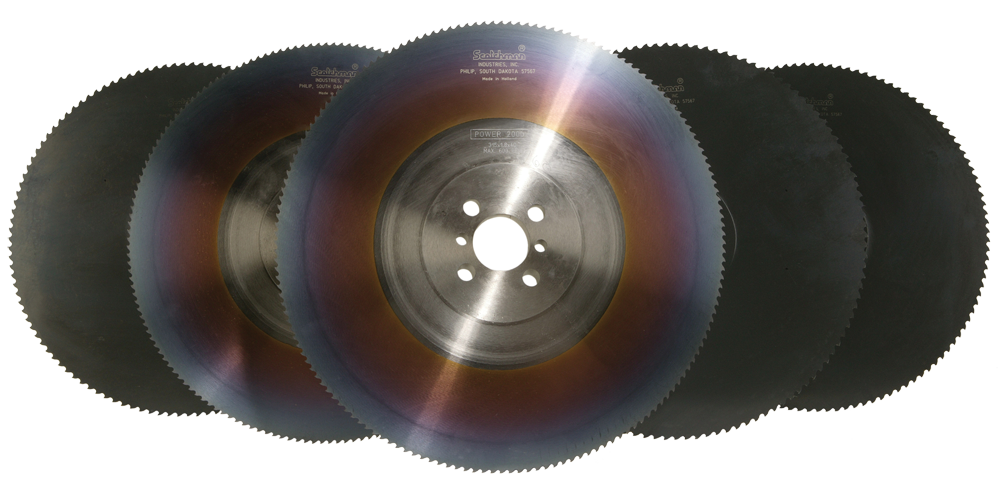

HSS Saw Blades & Sharpening ServiceOpen
HSS Circular Cold Saw Blades. Scotchman offers a complete selection of saw blades in stock for immediate delivery. Scotchman also offers a fast, high-quality blade sharpening service and will grind blades with special tooth number.

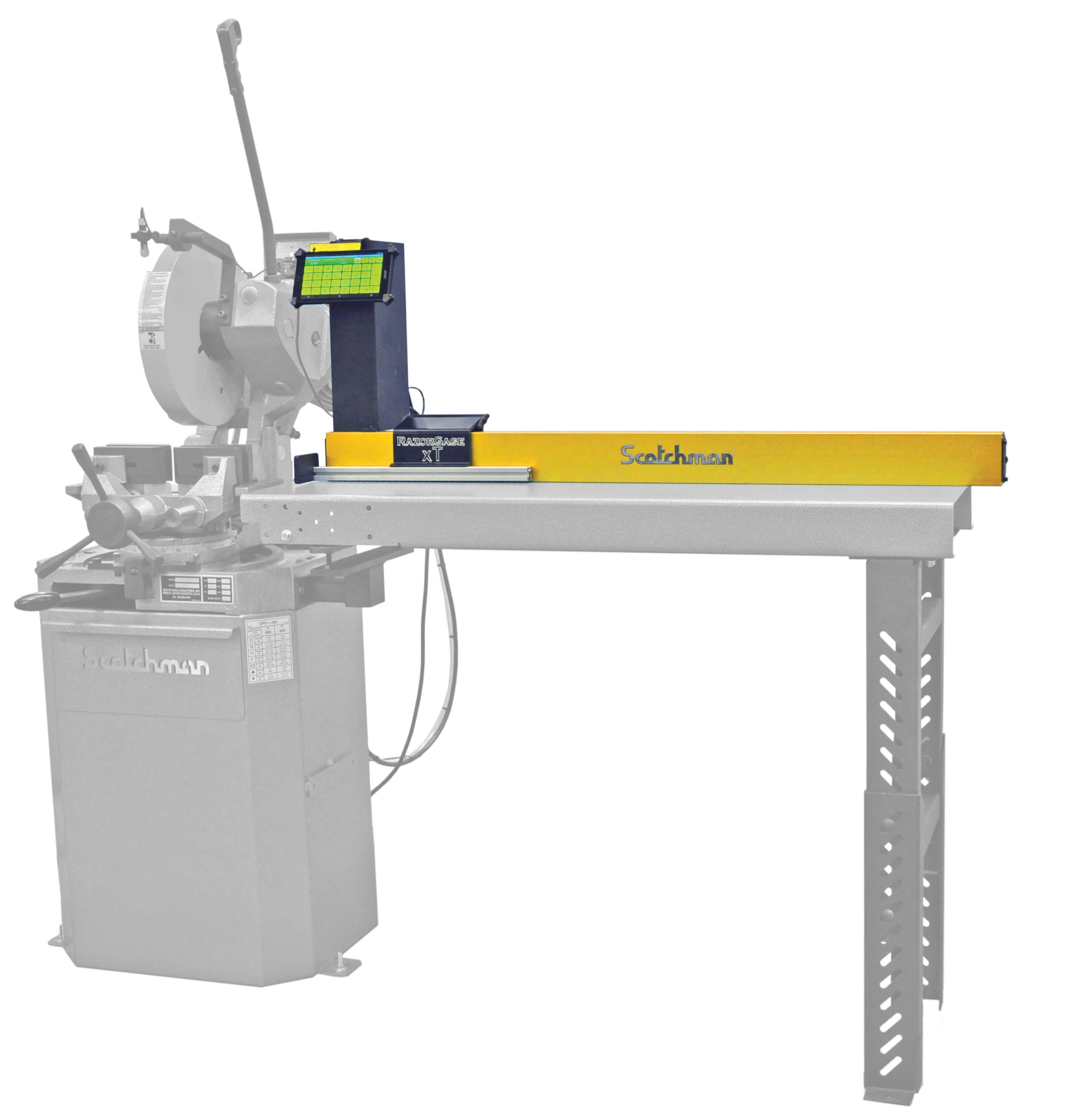

Digital Quick StopOpen
This precise 'go-to' stop is an entry level programmable length gauge guaranteed to save time, eliminate scrap & increase accuracy. Setup is as easy as entering the desired cut length and pressing go!
