Products > Ironworker > 95 Ton > DO95/140-24M

DO95/140-24M

The Scotchman DO95/140-24M is a Dual Operator machine with five built-in work stations. Can punch 1-3/16" hole in 1" plate.

DO95/140-24M

The Scotchman DO95/140-24M is a Dual Operator machine with five built-in work stations. Can punch 1-3/16" hole in 1" plate.

Own It For As Low As

$811 / month

lease-purchase financing available

DO95/140-24M

DescriptionClose

When two simultaneous operation (e.g. punching and notching) are required, a dual-operator ironworker is often the best solution.

The dual operator 95-ton ironworker machine has a hydraulic system designed with a tandem hydraulic pump allowing two operators to use the machine at the same time and ensures that both operations have full hydraulic pressure and speed.

The 95-ton capacity punch and a 9" throat depth, which can punch a 1-3/16" hole in 1" thick mild steel. Standard features include: 6" x 6" x 1/2" angle shear and a rectangular notcher that can notch 3" x 4" through 1/2" material. The 24" flat bar shear features a low rake angle and has the ability to shear up to 1" x 8" and 3/8" x 24" mild steel. This versatile ironworker allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs!

This American-made ironworker is built tough and utilizes a hydraulic system with electric valves & remote foot pedals for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!

Standard FeaturesOpen
  • Dual Operator, 5 Stations
  • Dual operator allows for two operators to work at the same time at full capacity
  • 95 Ton punch station
  • Keyed punch ram for safety
  • Punch gauging table with fence and scale
  • Die holder complete with 2" die insert
  • Punch nut with wrench & stripper
  • Adjustable swing-away stripper
  • One round punch & die: max. diameter 1-1/4"
  • LED work lights now standard equipment!
  • Jog control
  • Two adjustable electric stroke controls with scale
  • Two electric remote foot pedals
  • Tandem Hydraulic Pump
  • Two valves
  • Angle shear
  • Rectangle notcher with table, scale and guides
  • Flat bar shear with sabre blade
  • Shear table with miter fence
  • Tool table work area
  • Slug receptacles
  • Electrical box supplied with emergency palm button and lock-out tag-out accommodations
  • All guards necessary to comply with ANSI B11.5 safety standards
  • Forklift accommodations
  • Warranty: Three years on parts
  • Made in USA
Capacities & SpecsOpen
Punching Capacity 95 ton
1-3/16" in 1"
86 mt
30 in 25 mm
Special Tooling 4" Max. Dia. 102 mm Max. Dia.
Throat Depth 9" 229 mm
Flat Bar Shear
(Sabre Blade - Standard)
24" Length
1" x 8"
3/4" x 12"
1/2" x 16"
3/8" x 24"
610 mm
25 x 203 mm
19 x 305 mm
12 x 406 mm
10 x 610 mm
Angle Shear 90 degree 6" x 6" x 1/2" 152  x 152  x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear

3" x 3" x 3/8"
4" x 4" x 1/2"

76 x 76 x 10 mm
102 x 102 x 12 mm
Brake 12" 80 ton 72.5 mt
Brake 24" 55 ton 50 mt
Open End Brake Max. 1/4" x 5"
[Flat or Angle Iron]
6 x 127 mm
Pipe Notcher
Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher 3" x 5" x 3/8"
3" x 4" x 1/2"
76 x 127 x 10 mm
76 x 101 x 12 mm
90 degree V-Notcher 6" x 6" x 5/16"
3" x 3" x 3/8"
152 x 152 x 8 mm
76 x 76 x 10 mm
Notching in Leg of Channel 6" to 10" 152 to 254 mm
Channel Shear 2" to 6" adj. 51 to 152 mm adj.
Unistrut Shear Samples Required
Rod Shear
Round (max.)
Square
(max.)

9 Cavity - 1/4" to 1-1/4"
1 Cavity - 1/4" to 1"

6 to 32 mm
6 to 25 mm
Square Tube Shear 1/2" to 2"
12 gauge
12 to 51 mm
0.105" / 2.7 mm
Picket Tool 1/2", 3/4" & 1"
16 gauge
12, 19, & 25 mm
0.06" / 1.5 mm
Weld Coupon Bender (max.) 2" wide x 3/8" 51 x 10 mm
Offset Die Holder Max. 40 ton Max. 36 mt
Strokes per minute in light material 38 spm [Punch Station] 1/4" stroke
Strokes per minute in heavy material 15 spm [Punch Station] 3/4" stroke
Hydraulics 3,500/3,500 psi 241/241 bar
Motor Standard 10 hp
208/230/460, 380/575v; 3 ph
7.46 kW

Motor Optional 10 hp
220v, 1 ph
7.46 kW

Dimensions L: 69"
W: 37-1/2"
H: 71"
L: 175 cm
W: 95 cm
H: 180 cm
Shipping Weight (may vary) 3,800 lbs. 1,724 kg



Optional Tooling

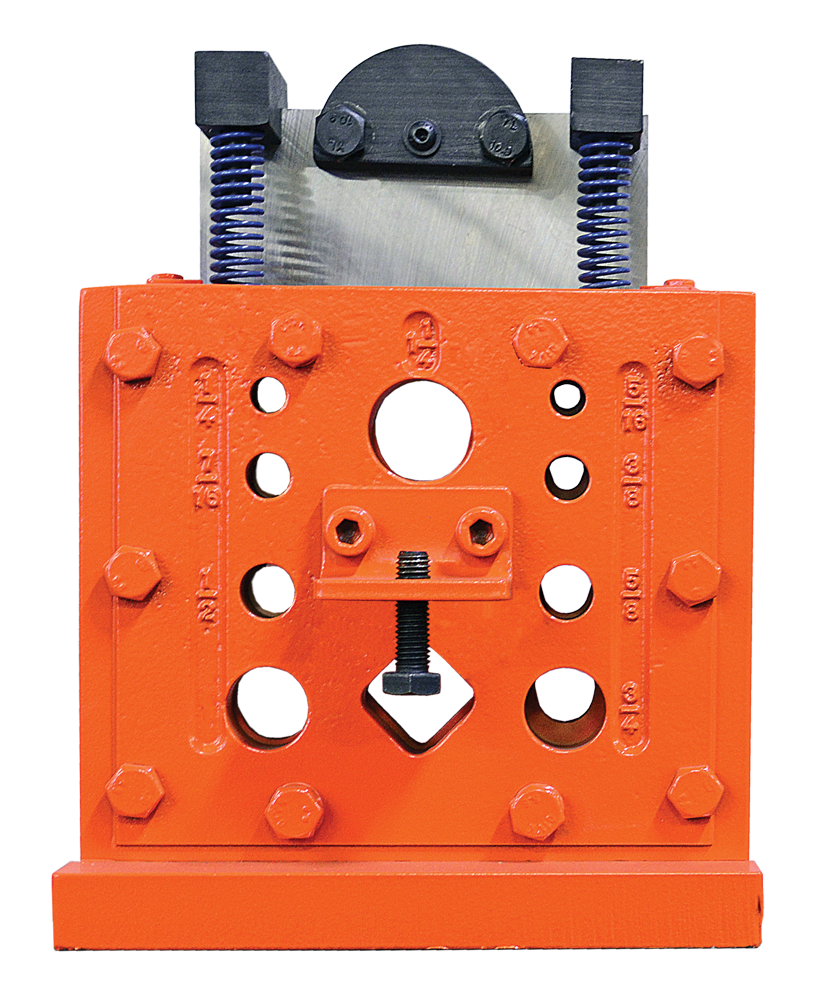

Rod ShearClose
This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
Pipe NotcherOpen
Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
Picket ToolOpen
The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
Unistrut ShearOpen
Tool will shear Unistrut without distortion
Weld Coupon BenderOpen
This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.

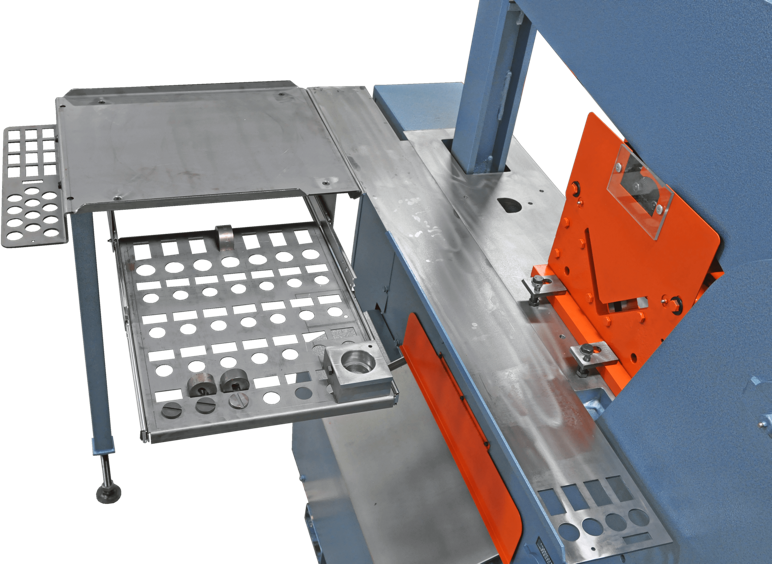

Tool Table Extension With Punch & Die Storage DrawerOpen
Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
Punch Table ExtensionOpen
Increase the work area on the punch station with this extension table.
Custom Built Tool examplesOpen
Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.

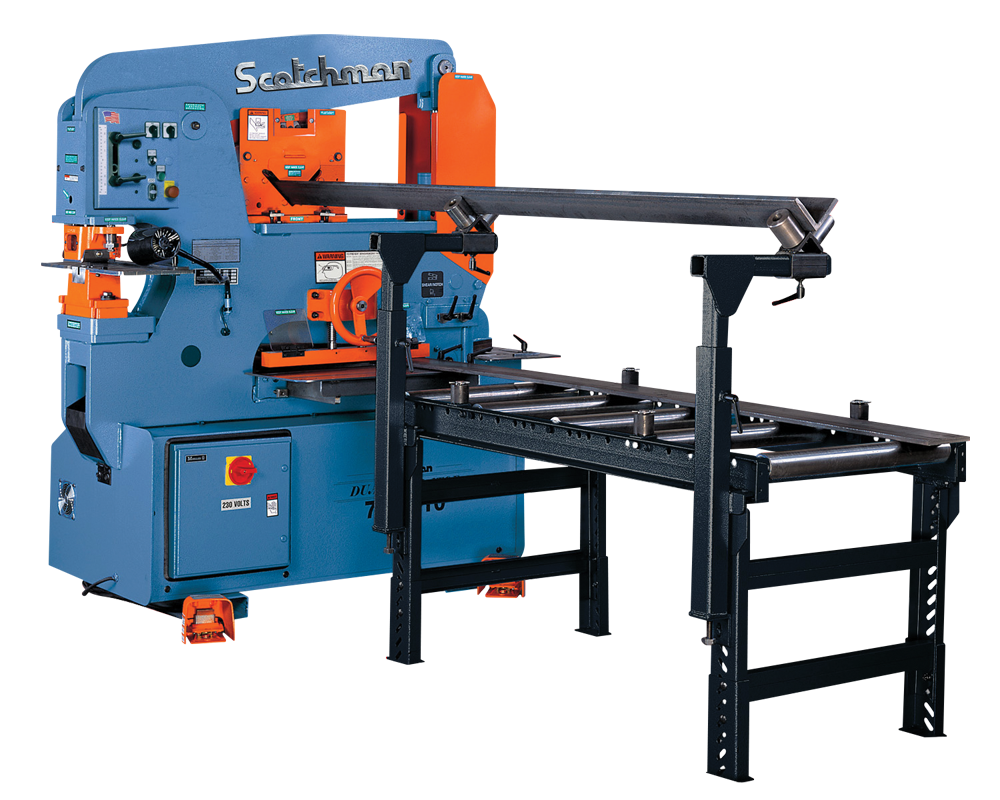

24" x 5' Conveyor with Angle Iron SupportOpen
24" x 5' Conveyor with Angle Iron Support attached to DO70
Multi-Loc Punch Gauging TableOpen
Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
Brake Table with Scale & Squaring ArmOpen
Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)

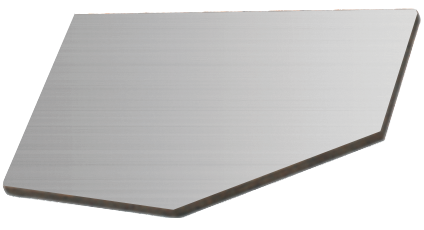

Unequal Leg Angle Shear BladesOpen
Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
Offset Die HolderOpen
Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
Urethane StripperOpen
Aids in the removal of material being punched and minimizes deformation of material from the punch station.

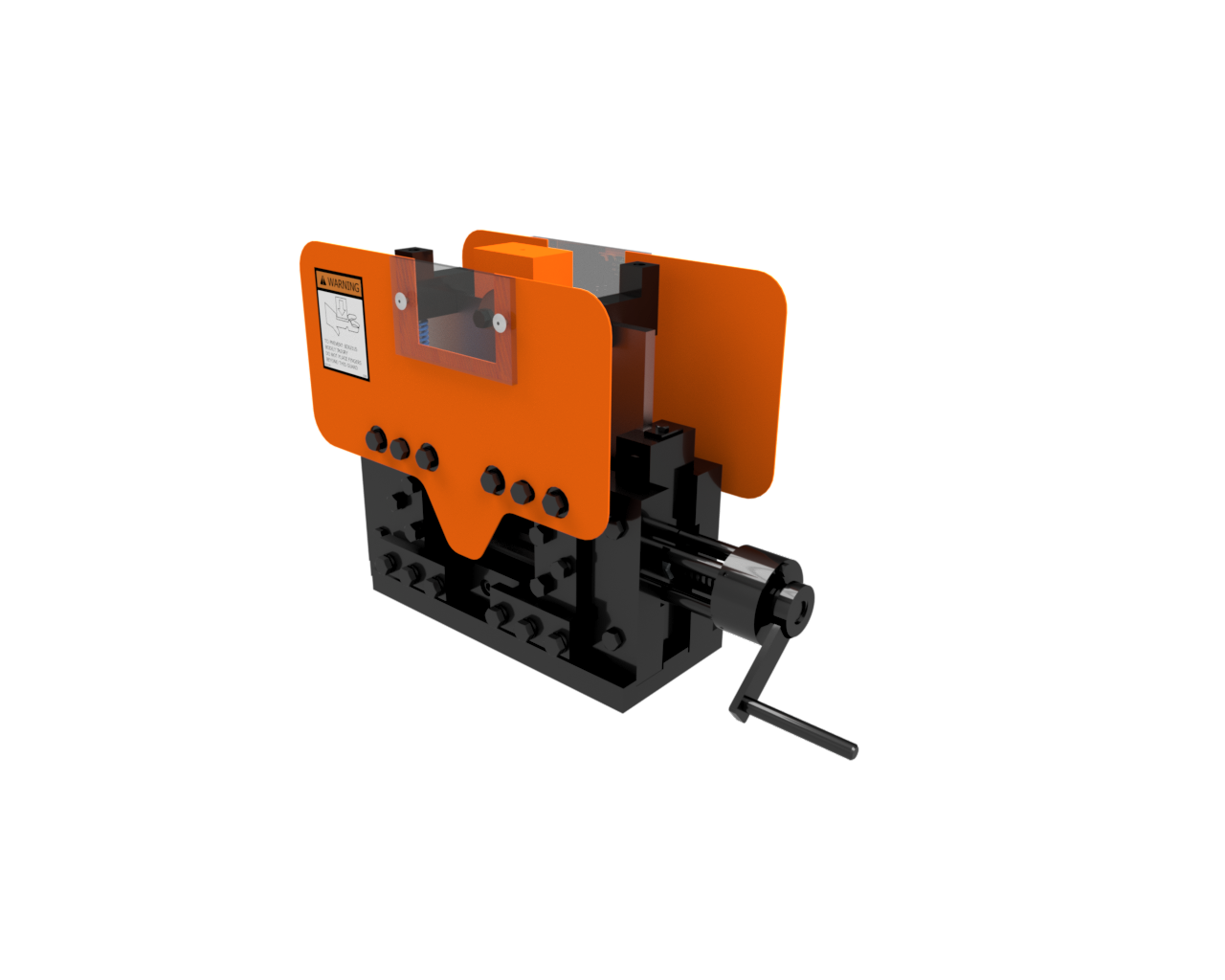

Channel ShearOpen
Shears channel iron distortion free from 2" to 6" (Adjustable)
12" BrakeOpen
Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.

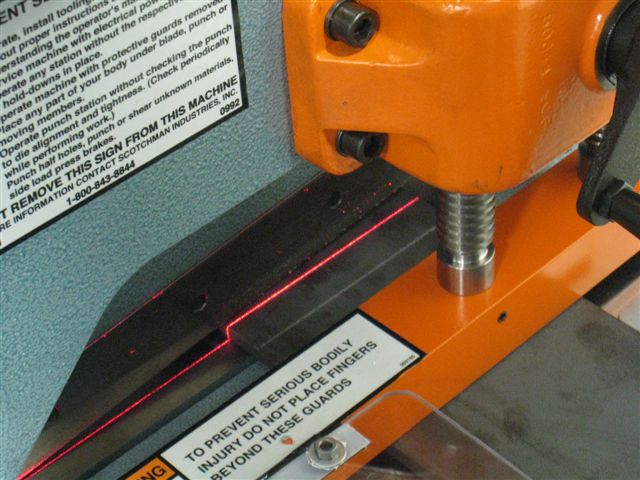

Laser Light - Bar ShearOpen
Easily see the cut mark & Increases precision at the bar shear.
48" Back GaugeOpen
Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
90° V-NotcherOpen
Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
Angle Shear Miter GuideOpen
45-degree & 22-degree miter guide for angle iron shear.
Open End BrakeOpen
Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
Economy Punch & Die PackageOpen
12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
Deluxe Punch & Die PackageOpen
Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
24" BrakeOpen
Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
Square Tube ShearOpen
Can shear 1/2" to 2" square tube, up to 14 gauge.
Brake Length Gauge with ScaleOpen
Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
