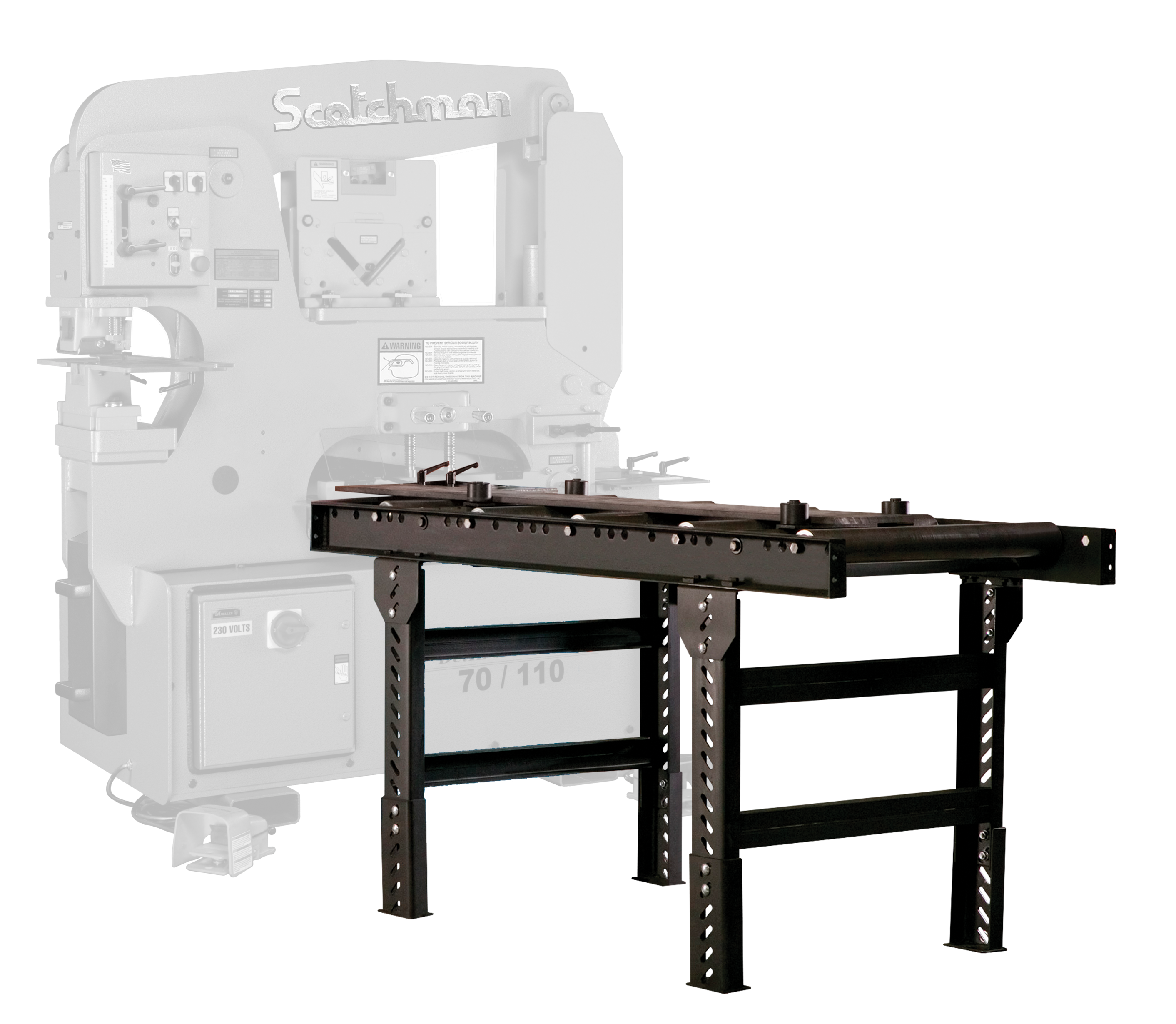

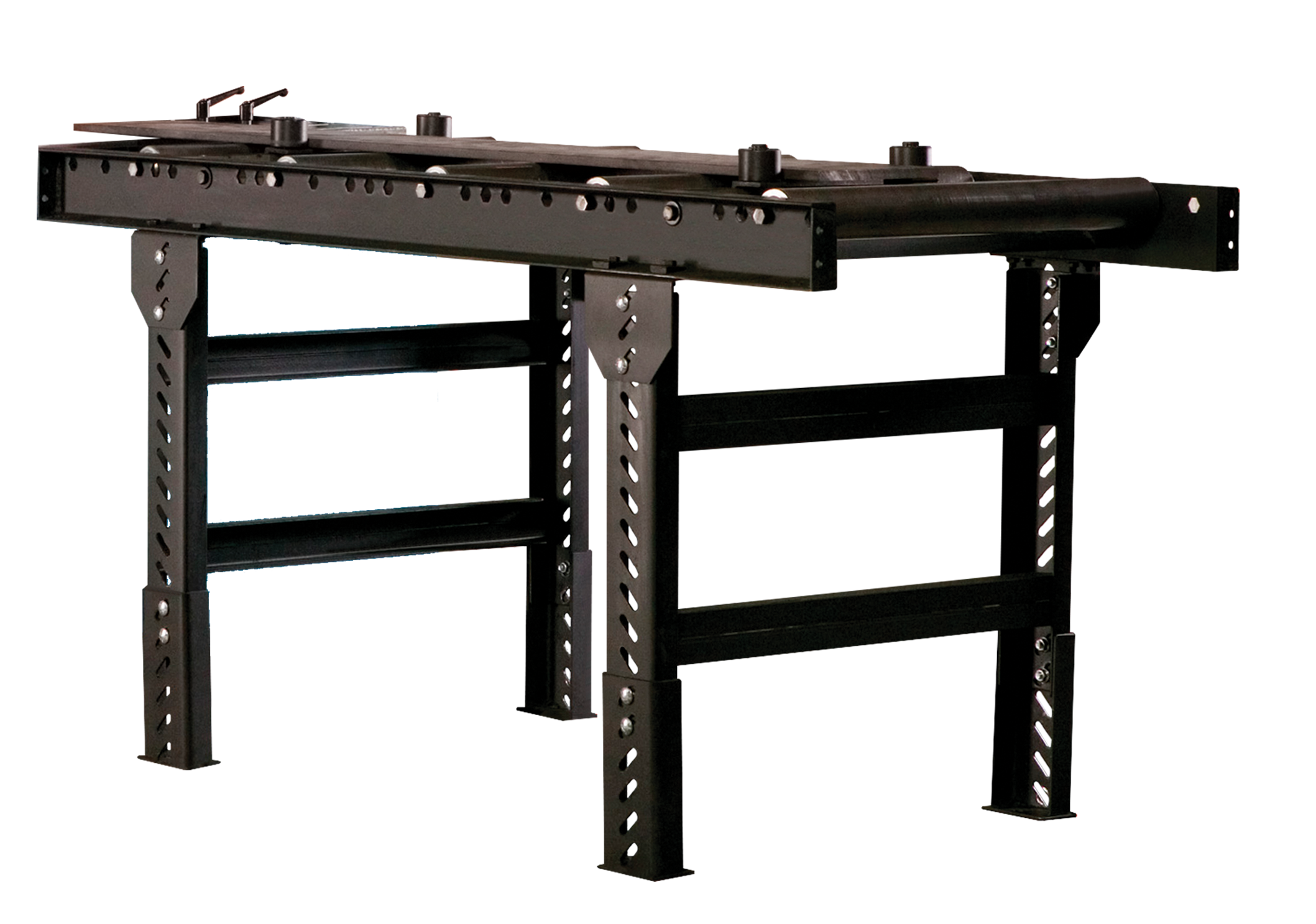

• Heavy-duty, welded construction conveyors are designed for heavier material use.
• Adjustable height: min of 26” to max of 43”. Max weight capacity: 850lbs/ft. Roller spacing: 12” apart.
• Used with our ironworkers, but they could also be used for material handling of bigger bundles(Bandsaws, e.g.).
• These are considered standalone systems, come in 5 ft sections, but can be bolted together for longer lengths.
• These can accept the optional angle support arms, which mount into predrilled holes on the conveyor.

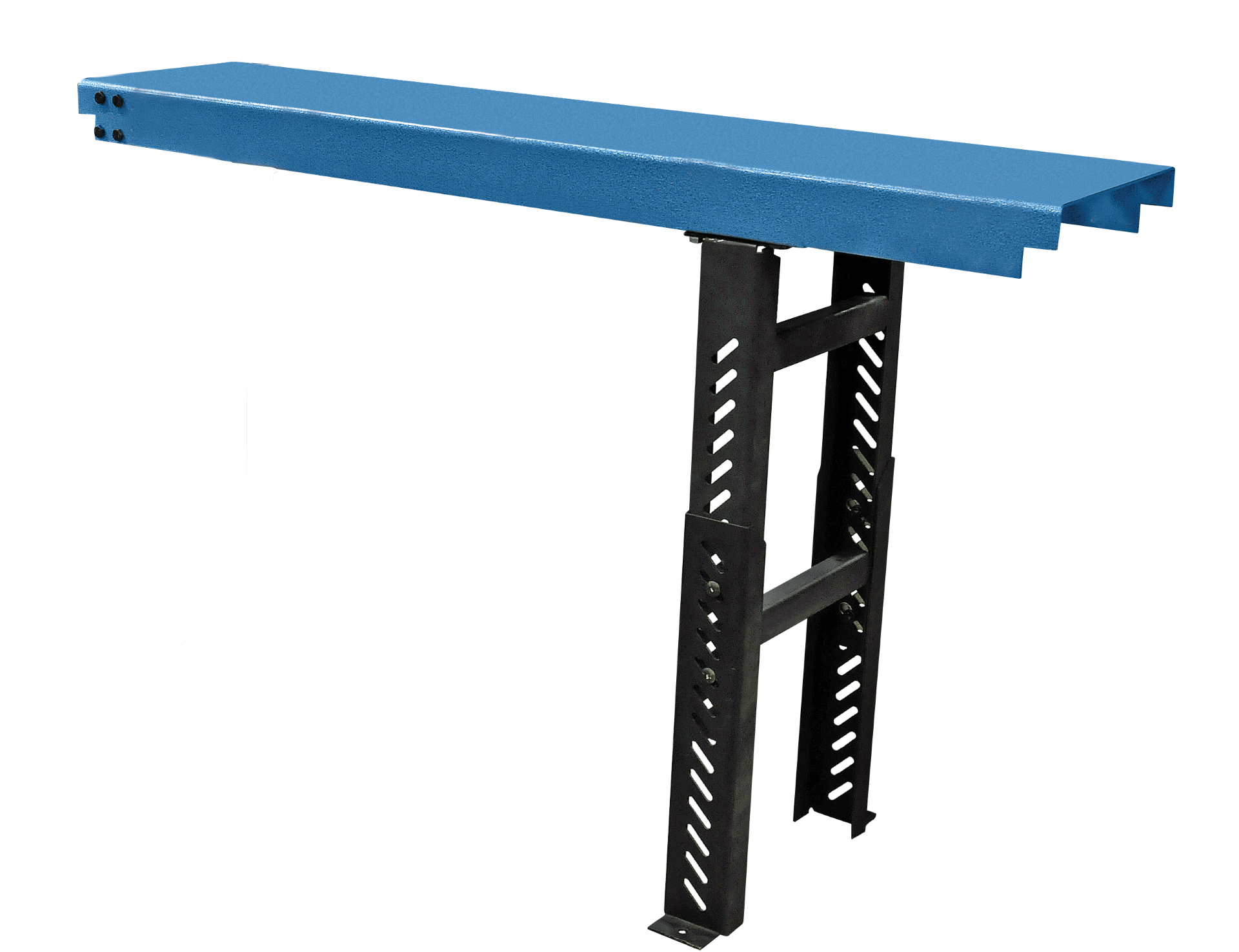

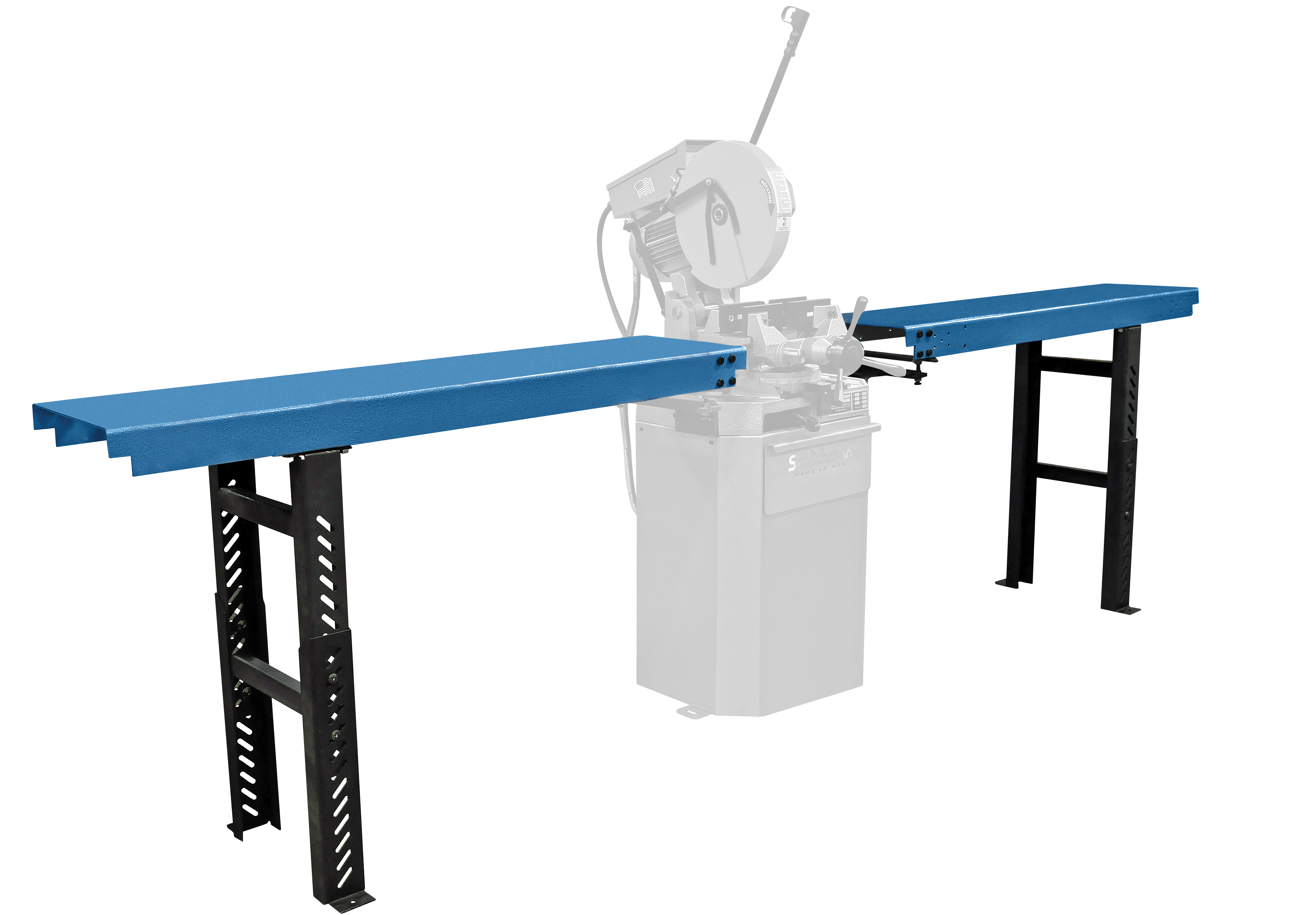

• Height range runs 28.75” to 46.50”, covering most machine configurations.
• Rollers are spaced 12” apart for consistent and reliable material feeding.
• Standard 5 ft. sections can be extended with optional 2 ft. extensions for longer runs.
• Compatible with RazorGage’s Digital Quick Stop, Stop/Pusher, and Full Auto systems across CPO 350, CPO 350 AFS, and SUP machines.

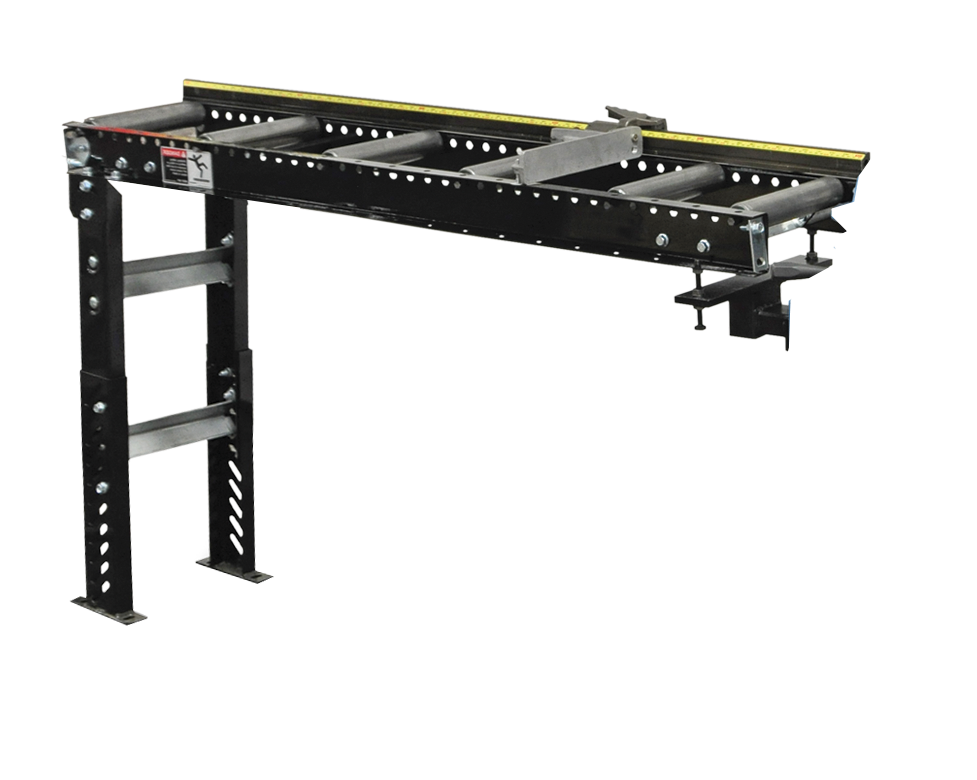

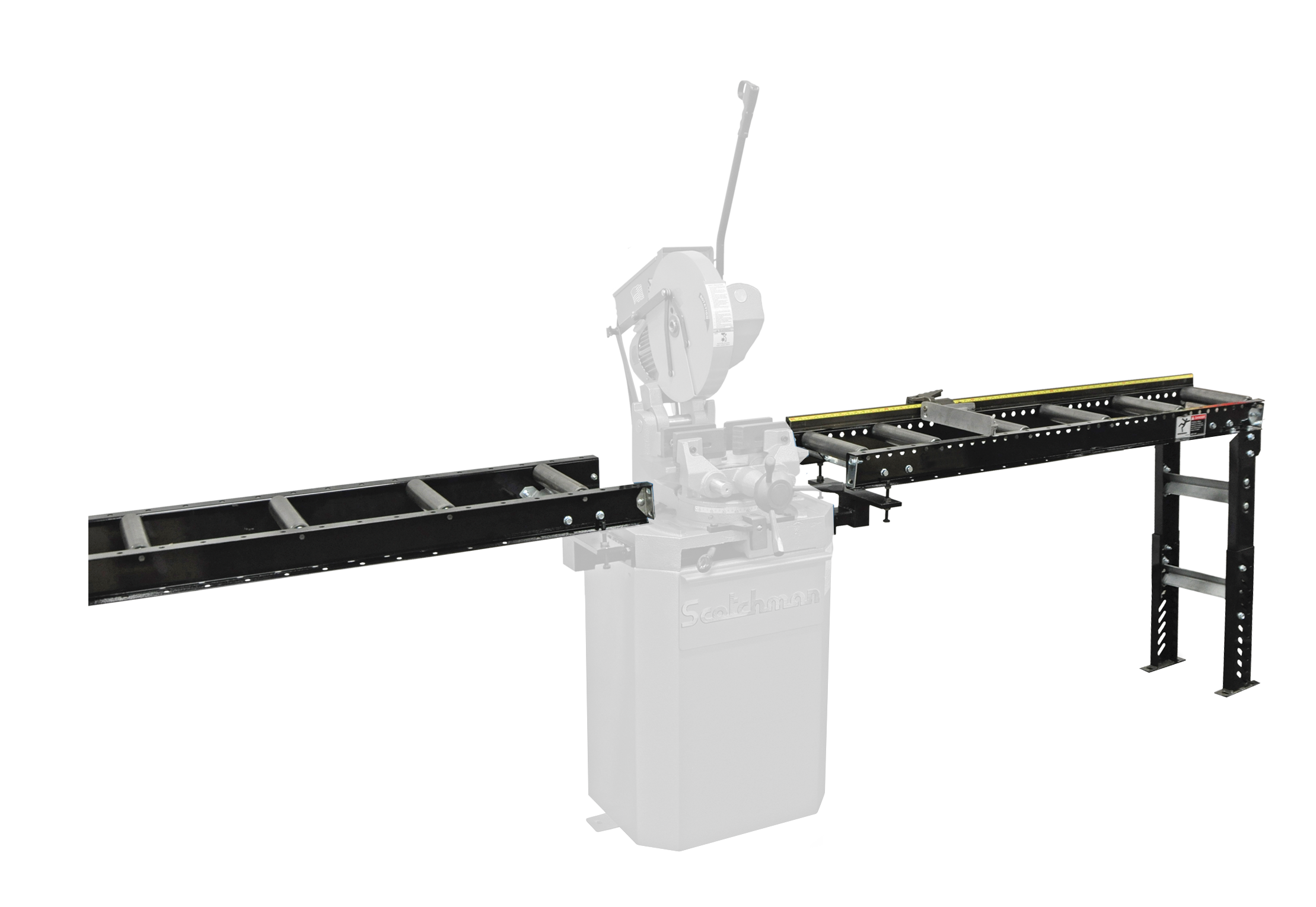

• Fits most 10” wide Open Conveyor locations, whether used as a free-standing system or bolted directly to the machine.
• Available in 5 ft. or 10 ft. rail lengths to accommodate different shop layouts and material runs.
• Height adjusts from 28.9” to 46.4” for flexible machine setup.
• Rated for 270 lbs. per foot with rollers spaced 12” apart for smooth material handling.
• Designed exclusively for mounting Scotchman’s AMS lineup, including Multi-Lock and Quick-Lock systems with all required hardware.
• Compatible with CPO 315 HFA saws and the SU-280 Bandsaw. Adjustable guides are available as an optional add-on.
.png)

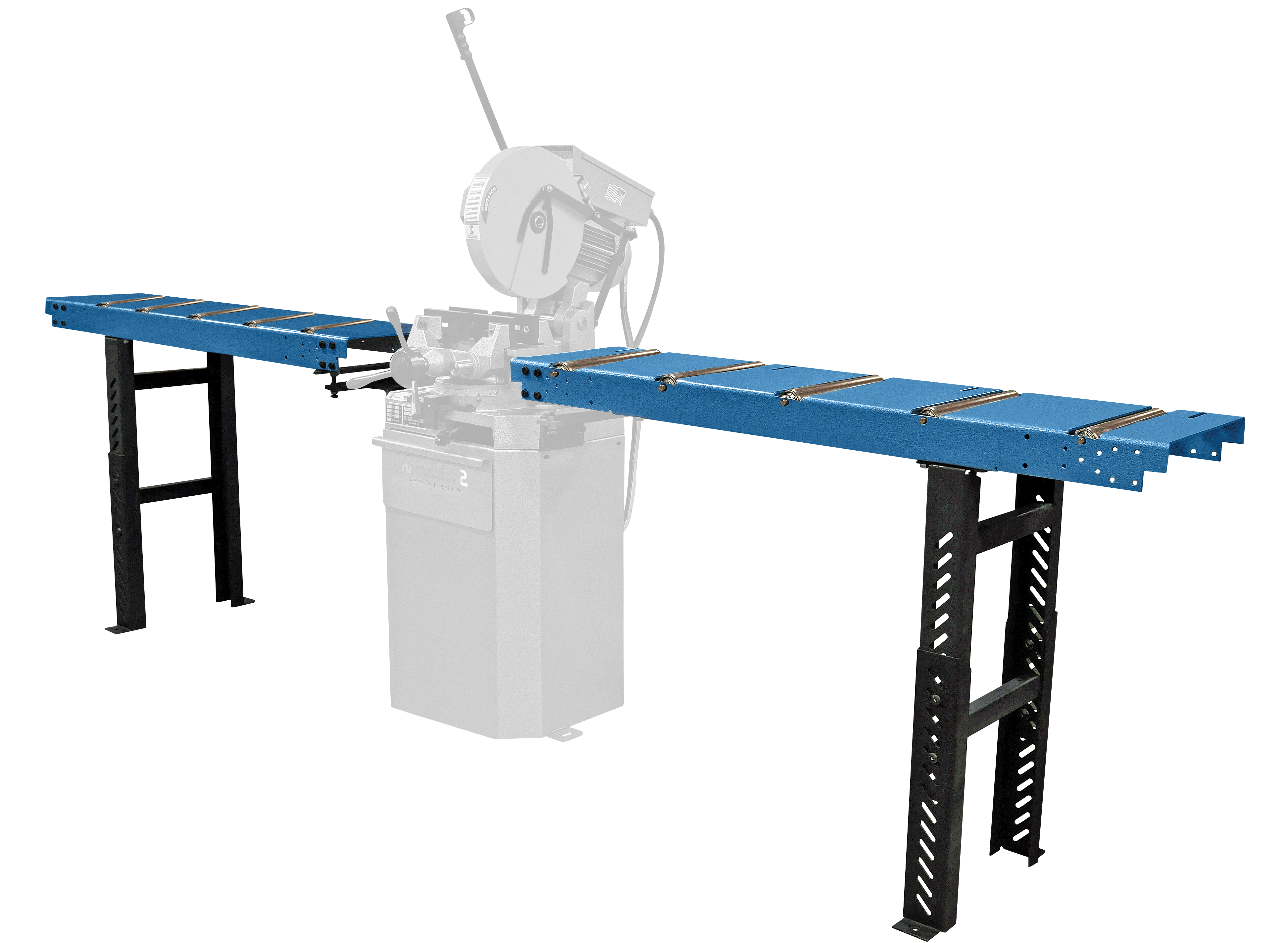

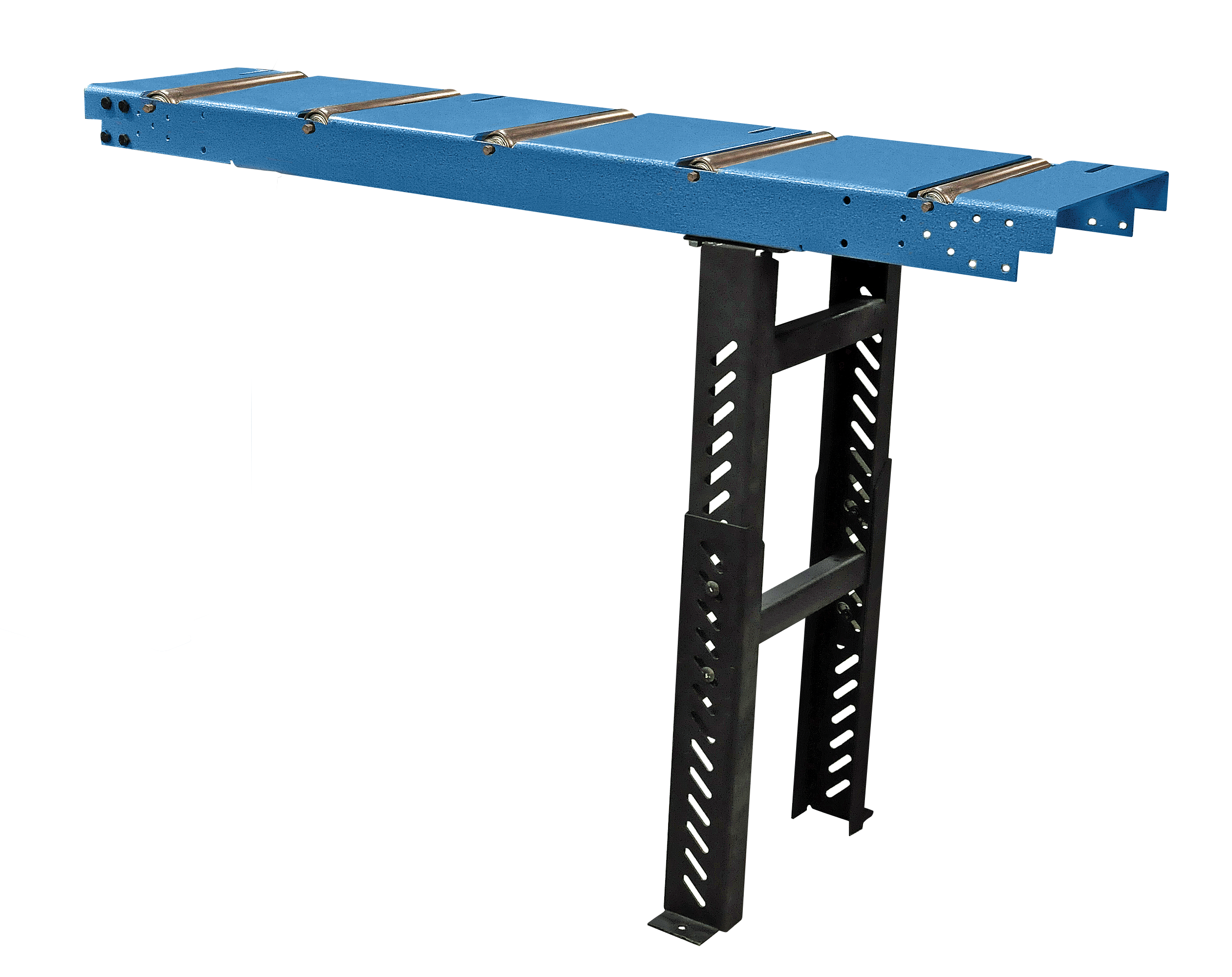

• Height adjusts from 29” to 46.5”, covering most shop configurations without modification.
• Rated for 270 lbs. per foot with rollers spaced 12” apart for reliable material support.
• Available with steel or urethane-coated rollers. Urethane rollers are ideal when surface marring is a concern.
• Standard 5 ft. sections can be extended with bolt-on 2 ft. extensions for longer runs.
• Compatible with RazorGage’s Digital Quick Stop, Stop/Pusher, and Full Auto systems on CPO 350, CPO 350 AFS, and SUP machines.
| Conveyor Specs | ||||||
| Item | Item Number | Max Height | Min Height | Roller Width | Leg Width Outside | Max Weight (Lbs per ft) |
| Open Conveyors Ironworkers | 026976 | 43" ** |
26" |
25" | 29" | 850 |
| 026997 |
73.5" ** (w/roller) |
38.5" (w/roller) 26" for lower rollers |
25" | 29" | 850 | |
| 026980 |
72.5" ** (w/guide) |
38.5" (w/guide) 26" for lower rollers |
25" | 29" | 850 | |
| Covered Conveyors | 028706-028732 | 46.5" * | 29" | 14" | 16.25" | 270 |
| 028906-028932 | 46.6" * | 29.1" | 14" | 16.25" | 270 | |
| Solid Tables | 028806-028832 | 46.6" * | 28.75" | N/A | 16.25" | N/A |
| Open Conveyors | 029240-029243 | 46.4" * | 28.9" | 10" | 16.25" | 270 |
*Heights are with a 4" leg overlap **Heights are with a 4-5/8" leg overlap for Ironworker Conveyor
