Quick-Loc Stop System

DescriptionClose

Simply squeeze the handle on the Quick-Loc System, slide it into position, and release it. Your measurement is set and will not slip.

Standard FeaturesOpen
  • System includes: Rail, Handle, Quick-Loc Arm, Measuring Tape & Mounting Hardware
  • Patented Loc-Stop System is manufactured from high quality stainless steel and provides a guarantee with teeth
  • Teeth on the rail are in 1/16" increments
  • The teeth on the stainless-steel stop align themselves to the teeth on the rail, to give you the exact measurement you set
  • Guaranteed not to slip - In seconds, your work station is set up and locked in
  • Adaptable to almost ANY type of machinery
  • Made in the USA
Capacities & SpecsOpen
Lengths: 5' & 10' Increments; up to 25' standard working lengths
Measurements: 1/16" Increments; up to 40 ft. tape
Feed Direction: Left Hand or Right Hand

Optional Tooling

5' or 10' Open Roller ConveyorClose
5' or 10' long Open Roller Conveyor.Conveyors can be coupled together to lengths up to 25'.

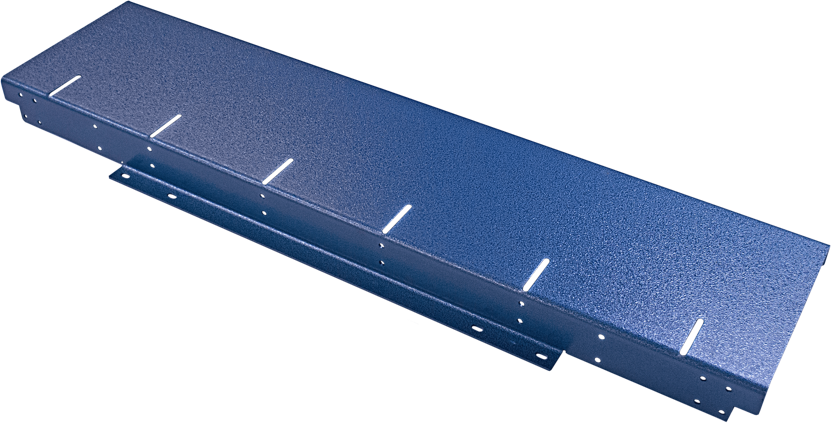

5' or 10' Flat TableOpen
5' or 10' long Flat Table. Tables can be coupled together to lengths up to 25'.

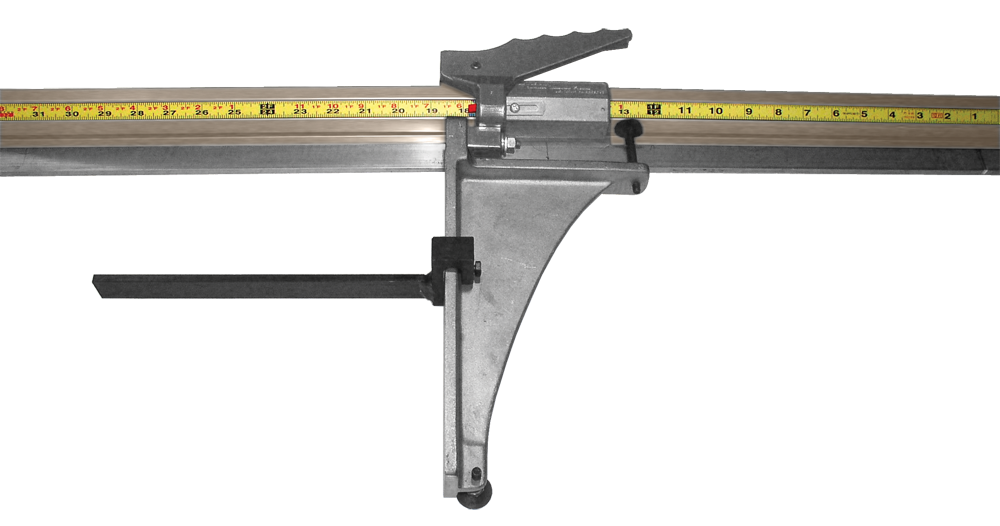

10" Extension for Quick-Loc ArmOpen
adds 10 inches of extension between the Quick-Loc measurement arm and the blade to safely push shorter material into the cutting area. (CPO Series Saws only)
20" Extension for Quick-Loc ArmOpen
adds 20 inches of extension between the Quick-Loc measurement arm and the blade to safely push shorter material into the cutting area. (SUP Series Saws only)
