12012-24M

The Scotchman 12012-24M is a Single Operator machine with four built-in work stations. Can punch 1-1/2" hole in 1" plate.

12012-24M

The Scotchman 12012-24M is a Single Operator machine with four built-in work stations. Can punch 1-1/2" hole in 1" plate.

Own It For As Low As

$756 / month

lease-purchase financing available

12012-24M

DescriptionOpen

Ideal for medium to larger metal fabrication businesses! With its 120-ton punch station this ironworker can punch a 1-1/2" hole in 1" thick, 65,000 tensile mild steel plate.

The 12012-24M hydraulic ironworker also features a 24" wide flat bar shear which can shear 1" x 12" and 1/2" x 24" plate. The bar shear blades can be rotated four times for maximum blade life. The angle shear can max cut 6" x 6" x 1/2", and like all Scotchman angle shears, is designed to give a distortion free cut.

The tool table design is a bonus feature and workstation that allows the operator to quickly and easily mount various optional tools making this ironworker adaptable to your specific job. This machine is versatile and is capable of accepting additional equipment such as press brakes, rod shear, tube shear, picket tool, as well as custom-built tooling.

This American-made ironworker is built tough and utilizes a two-stage hydraulic pump system with electric valves & a remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!

Standard FeaturesOpen
  • Single Operator, 4 Stations
  • 120 Ton punch station
  • Keyed punch ram for safety
  • Punch gauging table with fence and scale
  • Die holder complete with 2" die insert
  • Punch nut with wrench & stripper
  • One round punch & die: max. diameter 1-1/4"
  • LED work lights now standard equipment!
  • Jog control
  • Adjustable electric stroke control with scale
  • Electric remote foot pedal
  • Angle shear
  • Flat bar shear with 4-way reversible blade
  • Shear table with miter fence
  • Tool table work area
  • Slug receptacle
  • Two-stage hydraulic pump
  • Electrical box supplied with emergency palm button and lock-out tag-out accommodations
  • All guards necessary to comply with ANSI B11.5 safety standards
  • Forklift accommodations
  • Warranty: Three years on parts
  • Made in USA
Capacities & SpecsOpen
Punching Capacity 120 ton
1-1/2" in 1"
108 mt
38 in 25 mm
Special Tooling 4" Max. Dia. 102 mm Max. Dia.
Throat Depth 12" 305 mm
Flat Bar Shear 24" Length
1" x 12"
3/4" x 20"
1/2" x 24"
610 mm
25 x 305 mm
19 x 508 mm
12 x 610 mm
Angle Shear 90 degree 6" x 6" x 1/2" 152 x 152 x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear

3" x 3" x 3/8"
4" x 4" x 1/2"

76 x 76 x 10 mm
102 x 102 x 12 mm
Brake 12" 83 ton 75 mt
Brake 24" 65 ton 59 mt
Open End Brake Max. 1/4" x 5"
[Flat or Angle Iron]
6 x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher 2" x 2-1/2" x 3/8" 51 x 63 x 10 mm
90 degree V-Notcher 6" x 6" x 5/16" 152 x 152 x 8 mm
Channel Shear 2" to 6" adj. 51 to 152 mm adj.
Unistrut Shear Samples Required
Rod Shear
Round (max.)
Square
(max.)

9 Cavity - 1/4" to 1-1/4"
1 Cavity - 1/4" to 1"

6 to 32 mm
6 to 25 mm
Square Tube Shear 1/2" to 2"
12 gauge
12 to 51 mm
0.105" / 2.7 mm
Picket Tool 1/2", 3/4" & 1"
16 gauge
12, 19, & 25 mm
0.06" / 1.5 mm
Weld Coupon Bender (max.) 2" wide x 3/8" 51 x 10 mm
Offset Die Holder Max. 40 ton Max. 36 mt
Strokes per Minute in Light Material 1/4" Stroke [Punch Station] 47 spm
Strokes per Minute in Heavy Material 3/4" Stroke [Punch Station] 19 spm
Hydraulics 2,600 psi 179 bar
Motor Standard 5 hp
208/230/460, 380/575v; 3 ph
3.73 kW

Motor Optional 5 hp
220v, 1 ph
3.73 kW

Dimensions L: 79"
W: 32"
H: 75"
L: 201 cm
W: 81 cm
H: 191 cm
Shipping Weight (may vary) 5,204 lbs. 2,360 kg



Optional Tooling

Rod ShearOpen
This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
Pipe NotcherOpen
Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
Picket ToolOpen
The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
Unistrut ShearOpen
Tool will shear Unistrut without distortion
Weld Coupon BenderOpen
This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
Tool Table Extension With Punch & Die Storage DrawerOpen
Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
Punch Table ExtensionOpen
Increase the work area on the punch station with this extension table.
Custom Built Tool examplesOpen
Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
24" x 5' Conveyor with Angle Iron SupportOpen
24" x 5' Conveyor with Angle Iron Support attached to DO70
Multi-Loc Punch Gauging TableOpen
Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
Brake Table with Scale & Squaring ArmOpen
Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
Hydraulic Hold DownOpen
Hydraulic hold down for flat bar shear
Unequal Leg Angle Shear BladesOpen
Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
Offset Die HolderOpen
Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
Urethane StripperOpen
Aids in the removal of material being punched and minimizes deformation of material from the punch station.
Channel ShearOpen
Shears channel iron distortion free from 2" to 6" (Adjustable)
12" BrakeOpen
Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
Laser Light - Bar ShearOpen
Easily see the cut mark & Increases precision at the bar shear.
48" Back GaugeOpen
Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
90° V-NotcherOpen
Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.

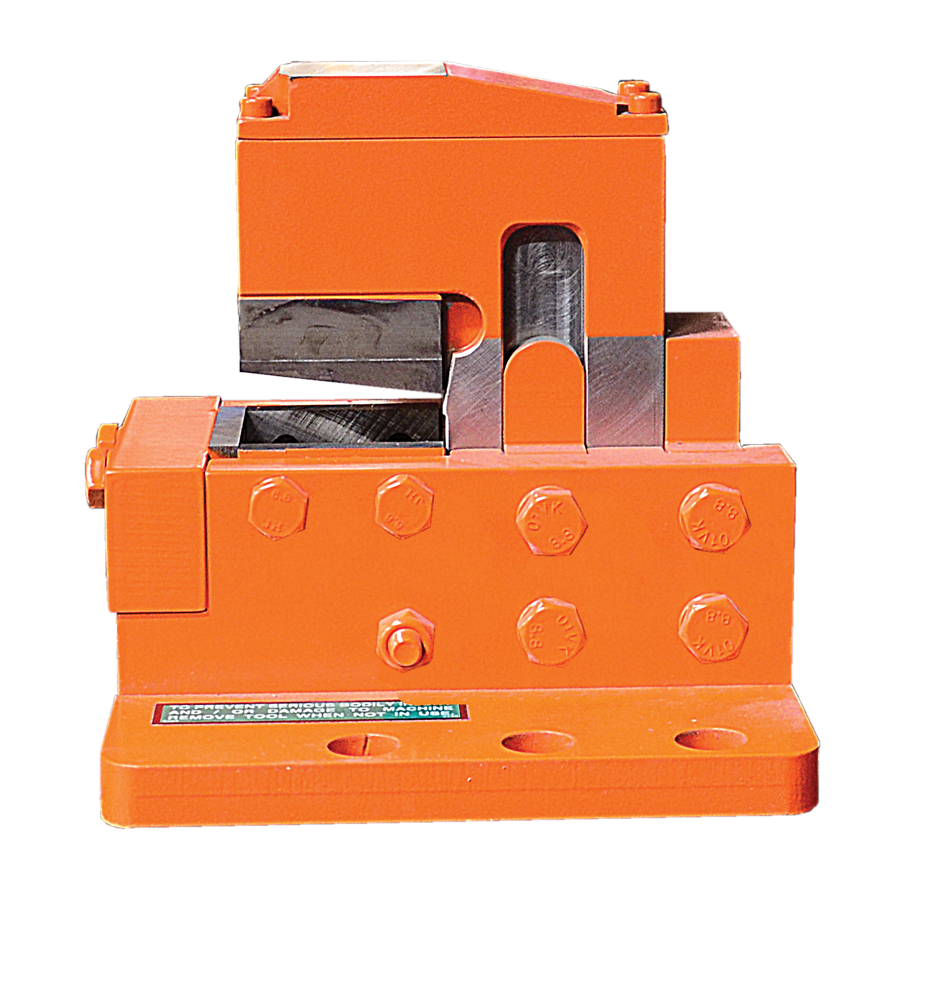

Rectangle NotcherOpen
Convert the punch station into a rectangle notcher - 2" x 2-1/2" x 3/8" capacity
Angle Shear Miter GuideOpen
45-degree & 22-degree miter guide for angle iron shear.
Open End BrakeOpen
Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
Economy Punch & Die PackageOpen
12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
Deluxe Punch & Die PackageOpen
Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
24" BrakeOpen
Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
Square Tube ShearOpen
Can shear 1/2" to 2" square tube, up to 14 gauge.
Brake Length Gauge with ScaleOpen
Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
