Description

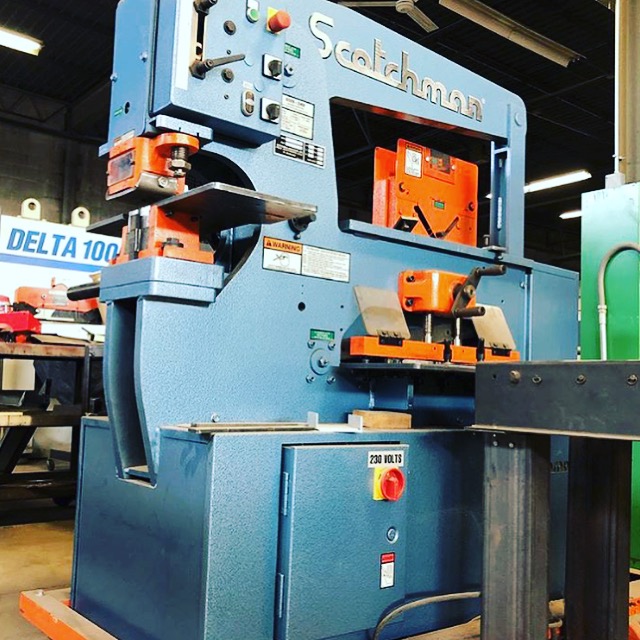

Ideal for medium to larger metal fabrication businesses! With its 120-ton punch station this ironworker can punch a 1-1/2" hole in 1" thick, 65,000 tensile mild steel plate.

The 12012-24M hydraulic ironworker also features a 24" wide flat bar shear which can shear 1" x 12" and 1/2" x 24" plate. The bar shear blades can be rotated four times for maximum blade life. The angle shear can max cut 6" x 6" x 1/2", and like all Scotchman angle shears, is designed to give a distortion free cut.

The tool table design is a bonus feature and workstation that allows the operator to quickly and easily mount various optional tools making this ironworker adaptable to your specific job. This machine is versatile and is capable of accepting additional equipment such as press brakes, rod shear, tube shear, picket tool, as well as custom-built tooling.

This American-made ironworker is built tough and utilizes a two-stage hydraulic pump system with electric valves & a remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!

STD Features

  • Single Operator, 4 Stations
  • 120 Ton punch station
  • Keyed punch ram for safety
  • Punch gauging table with fence and scale
  • Die holder complete with 2" die insert
  • Punch nut with wrench & stripper
  • One round punch & die: max. diameter 1-1/4"
  • LED work lights now standard equipment!
  • Jog control
  • Adjustable electric stroke control with scale
  • Electric remote foot pedal
  • Angle shear
  • Flat bar shear with 4-way reversible blade
  • Shear table with miter fence
  • Tool table work area
  • Slug receptacle
  • Two-stage hydraulic pump
  • Electrical box supplied with emergency palm button and lock-out tag-out accommodations
  • All guards necessary to comply with ANSI B11.5 safety standards
  • Forklift accommodations
  • Warranty: Three years on parts
  • Made in USA

Optional Tooling:

Rod Shear-9 cavity XL
Pipe Notcher - All IW Models
Picket tool
Unistrut Shear
Weld Coupon Bender - XL models
Tool Table Ext - XL models
Punch Table Ext. - XL models
SPECIAL Custom Tooling
24" x 5' Conveyor with Angle Iron Support - XL Models
Multi-Loc Punch Gauging Table - 36" & 85" extensions - XL Models
Brake Table w/Scale & Squaring Arm - XL models - XL Models - 12" & 24" brakes
Hydraulic Hold Down
Unequal Leg Angle Shear Blades
Offset Die Holder - XL Models
Urethane Stripper - XL Models
Channel Shear - XL Models
12" Brake - XL Models
Laser Light - Bar Shear - XL models
48" Back Gauge
90° V-Notcher - XL Models
Angle Shear Miter Guide
Open End Brake - XL Models
Econ P&D Package - XL Models
Dlx P&D Pack - XL Models
24" Brake - XL Models
Square Tube Shear - XL Models
Brake Length Gauge w/Scale - ALL Models
