Scotchman Industries

DO120

Visit this product here: http://www.scotchman.com/ironworker/view/do120

Description

STD Features

  • Dual Operator, 5 Stations
  • Dual operator allows for two operators to work at the same time at full capacity
  • 120 Ton punch station
  • Keyed punch ram for safety
  • Punch gauging table with fence and scale
  • Die holder complete with 2" die insert
  • Punch nut with wrench & stripper
  • Adjustable swing-away stripper
  • One round punch & die: max. diameter 1-1/4"
  • Jog control
  • Two adjustable electric stroke controls with scale
  • Two electric remote foot pedals
  • Tandem Hydraulic Pump
  • Two valves
  • Angle shear
  • Rectangle notcher with table, scale and guides
  • Flat bar shear with sabre blade
  • Shear table with miter fence
  • Tool table work area
  • Slug receptacles
  • Electrical box supplied with emergency palm button and lock-out tag-out accommodations
  • All guards necessary to comply with ANSI B11.5 safety standards
  • Forklift accommodations
  • Warranty: Three years on parts
  • Made in USA

Optional Tooling:

Rod Shear-9 cavity XL
Pipe Notcher - All IW Models
Picket tool
Unistrut Shear

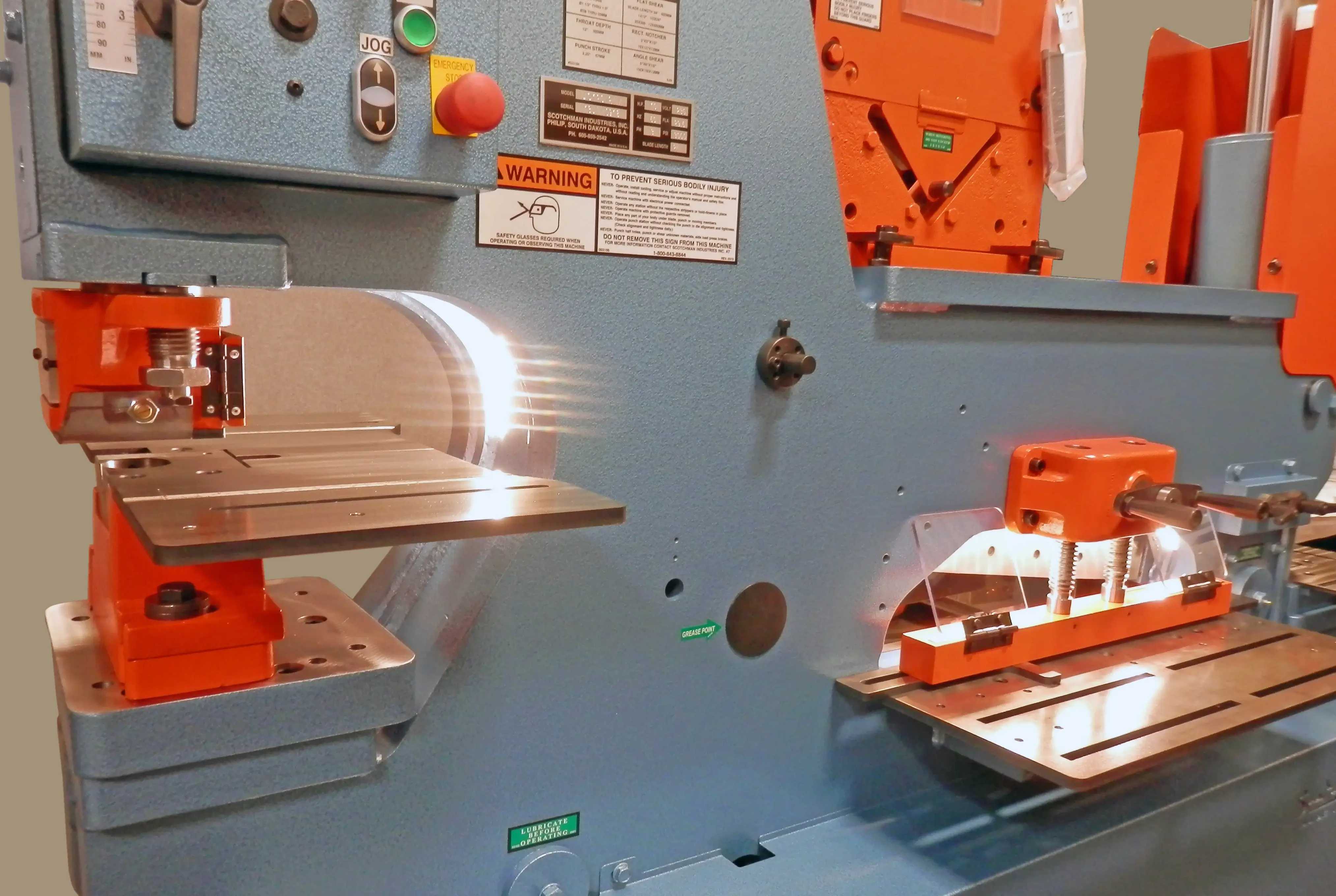

LED Lights - XL models
Weld Coupon Bender - XL models
Tool Table Ext - XL models
Punch Table Ext. - XL models
SPECIAL Custom Tooling
24" x 5' Conveyor with Angle Iron Support - XL Models
Multi-Loc Punch Gauging Table - 36" & 85" extensions - XL Models
Brake Table w/Scale & Squaring Arm - XL models - XL Models - 12" & 24" brakes
Hydraulic Hold Down
Unequal Leg Angle Shear Blades
Offset Die Holder - XL Models
Urethane Stripper - XL Models
Channel Shear - XL Models
12" Brake - XL Models
Laser Light - Bar Shear - XL models
48" Back Gauge
Angle Shear Miter Guide
Open End Brake - XL Models
Econ P&D Package - XL Models
Dlx P&D Pack - XL Models
24" Brake - XL Models
Square Tube Shear - XL Models
Brake Length Gauge w/Scale - ALL Models
