Products > Ironworkers > 85 Ton > FI8510-20M

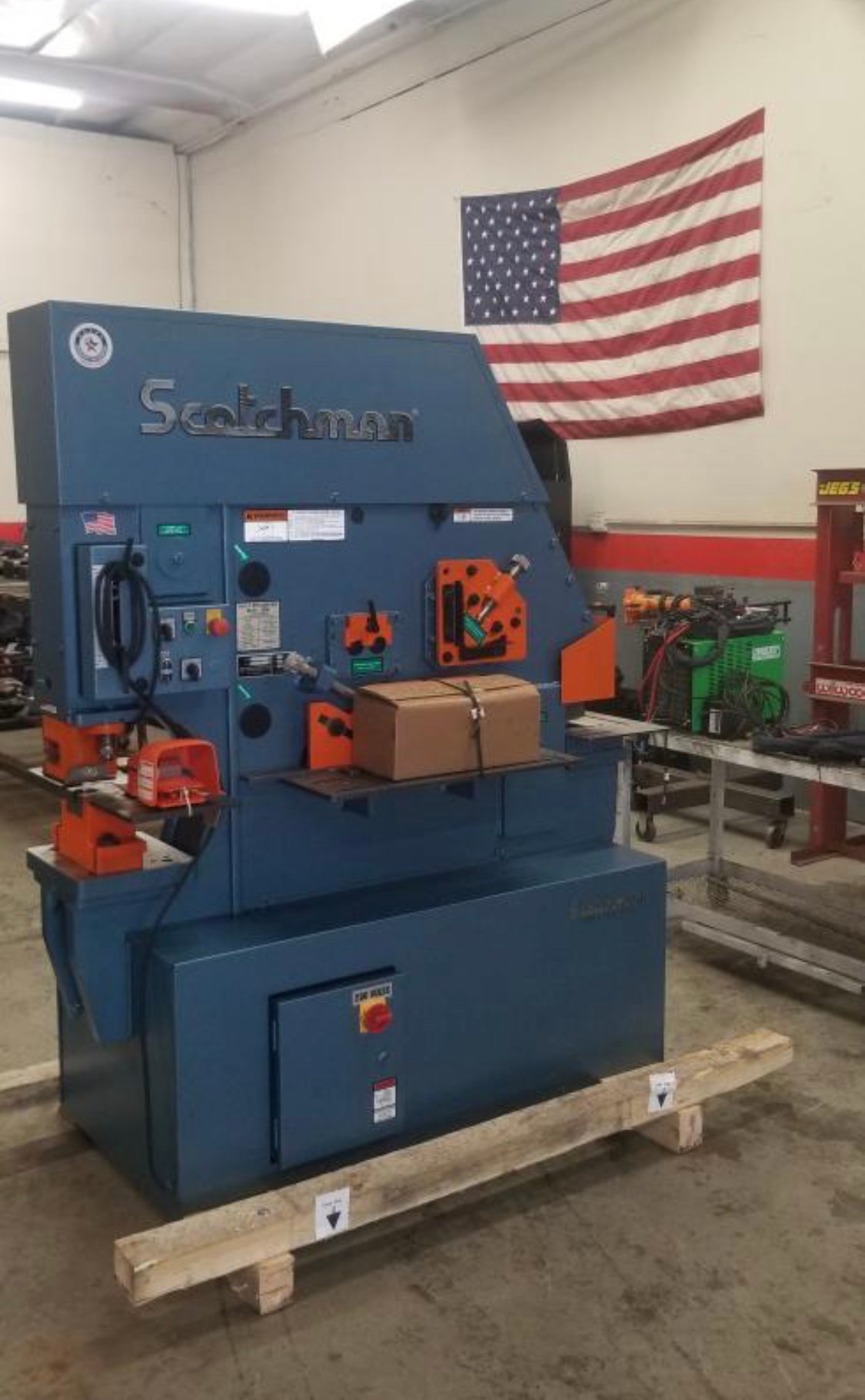

85 Ton Ironworker

Fully Integrated Single Operator

Watch Video

FI8510-20M

Select Option

Description
Standard Features
Capacities & Specs

Single Operator, 5 Stations
85 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Adjustable electric stroke control with scale
Electric remote foot pedal
Slug-less angle shear
Flat bar shear
Shear table with miter fence
Rod shear
Slug receptacles
Rectangle notcher with table, scale and guide
Two-stage hydraulic pump
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Punching Capacity	85 ton 1-1/16" in 1"	77 mt 27 mm in 25 mm
Special Tooling	4" Max. Dia.	102 mm Max. Dia.
Throat Depth	10"	254 mm
Flat Bar Shear	20" Length 1" x 12" 3/4" x 20"	508 mm 25 mm x 305 mm 19 mm x 508 mm
Angle Shear 90 degree	6" x 6" x 1/2"	152 mm x 152 mm x 12 mm
Angle Shear 45 degree (w/Bar Shear)	4" x 4" x 1/2"	102 mm x 102 mm x 12 mm
Brake 12"	85 ton	77 mt
Brake 24"	85 ton	77 mt
Open End Brake	Max. 1/4" x 5" [Flat or Angle Iron]	6 mm x 127 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	3" x 5" x 1/2"	76 mm x 127 mm x 12 mm
90 degree V-Notcher (Punch Station)	6" x 6" x 5/16"	152 mm x 152 mm x 8 mm
Channel Shear	2" to 6" adj.	51 mm to 152 mm adj.
Unistrut Shear	Samples Required
Rod Shear Round (max.) Square (max.)	1 Cavity - 1-1/2" 1 Cavity - 1-1/4"	38 mm 32 mm
Square Tube Shear	1/2" to 2" 12 gauge	12 mm to 51 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12 mm, 19 mm, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Offset Die Holder	Max. 40 ton	Max. 36 mt
Strokes per Minute in Light Material	51 spm [Punch Station]	1/4" Stroke
Strokes per Minute in Heavy Material	24 spm [Punch Station]	3/4" Stroke
Hydraulics	2,600 psi	179 bar
Motor Standard	5 hp 208/230/460, 380/575v; 3 ph	3.76 kW
Motor Optional	5 hp 220v, 1 ph	3.76 kW
Dimensions	L: 67-3/4" W: 32" H: 78"	L: 172 cm W: 81.5 cm H: 198 cm
Shipping Weight (may vary)	4,554 lbs.	2,066 kg

Own It For As Low As

^$700 / month

lease-purchase financing available

REQUEST Pricing

Optional Tooling

Pipe Notcher

Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"

View

Picket Tool

The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.

View

Unistrut Shear

Tool will shear Unistrut without distortion

View

LED Lights

The LED Light Package is installed on the punch & shear stations to make sure you can always see what you are working on. This is a factory installed option only.

View

Weld Coupon Bender

This tool will is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.

View

Punch Table Extension

Increase the work area on the punch station with this extension table.

View

Custom Built Tool examples

Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.

View

24" x 5' Roller Conveyor with Angle Iron Support

24" x 5' Roller Conveyor with Angle Iron Support attached to FI8510/20M

View

Multi-Loc Punch Gauging Table

Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.

View

Brake Table with Scale & Squaring Arm

Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)

View

Hydraulic Hold Down

Hydraulic hold down for flat bar shear

View

Offset Die Holder

Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)

View

Urethane Stripper

Aids in the removal of material being punched and minimizes deformation of material from the punch station.

View

Channel Shear

Shears channel iron distortion free from 2" to 6" (Adjustable)

View

12" Brake

Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.

View

Laser Light - Bar Shear

Easily see the cut mark & Increases precision at the bar shear.

View

48" Back Gauge

Make consistent & repeatable cuts an the bar shear using a Back Gauge tool. (Available in Manual or Electric versions)

View

90° V-Notcher

Convert the punch station into a 90° V-Notcher. 6" x 6" x 5/16" capacity in punch station.

View

Open End Brake

Max 1/4" x 5" Flat or Angle Iron *use on punch station only.

View

Economy Punch & Die Package

12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)

View

Deluxe Punch & Die Package

Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.

View

24" Brake

Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.

View

Square Tube Shear

Can shear 1/2" to 2" square tube, up to 14 gauge.

View

Custom tooling

Not Sure?

Here are some factors to consider
when selecting an ironworker
that works for you.

We’re Here to Help!

Scotchman Industries

FI85

Visit this product here: https://www.scotchman.com/ironworker/view/fi85

Description

STD Features

Single Operator, 5 Stations
85 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Adjustable electric stroke control with scale
Electric remote foot pedal
Slug-less angle shear
Flat bar shear
Shear table with miter fence
Rod shear
Slug receptacles
Rectangle notcher with table, scale and guide
Two-stage hydraulic pump
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Optional Tooling:

Pipe Notcher - All IW Models

Picket tool

Unistrut Shear

LED Lights - FI85 & DO85

Weld Coupon Bender - FI85 & DO85

Punch Table Ext. - XL models

SPECIAL Custom Tooling

24" x 5' conveyor w/Angle Iron Support - FI85 & DO85

Multi-Loc Punch Gauging Table - 36" & 85" extensions - XL Models

Brake Table w/Scale & Squaring Arm - XL models - XL Models - 12" & 24" brakes

Hydraulic Hold Down

Offset Die Holder - XL Models

Urethane Stripper - XL Models

Channel Shear - XL Models

12" Brake - XL Models

Laser Light - Bar Shear - XL models

48" Back Gauge

90° V-Notcher - FI85

Open End Brake - XL Models

Econ P&D Package - XL Models

24" Brake - XL Models

Square Tube Shear - XL Models

Capacities & Specs

Punching Capacity	85 ton 1-1/16" in 1"	77 mt 27 mm in 25 mm
Special Tooling	4" Max. Dia.	102 mm Max. Dia.
Throat Depth	10"	254 mm
Flat Bar Shear	20" Length 1" x 12" 3/4" x 20"	508 mm 25 mm x 305 mm 19 mm x 508 mm
Angle Shear 90 degree	6" x 6" x 1/2"	152 mm x 152 mm x 12 mm
Angle Shear 45 degree (w/Bar Shear)	4" x 4" x 1/2"	102 mm x 102 mm x 12 mm
Brake 12"	85 ton	77 mt
Brake 24"	85 ton	77 mt
Open End Brake	Max. 1/4" x 5" [Flat or Angle Iron]	6 mm x 127 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	3" x 5" x 1/2"	76 mm x 127 mm x 12 mm
90 degree V-Notcher (Punch Station)	6" x 6" x 5/16"	152 mm x 152 mm x 8 mm
Channel Shear	2" to 6" adj.	51 mm to 152 mm adj.
Unistrut Shear	Samples Required
Rod Shear Round (max.) Square (max.)	1 Cavity - 1-1/2" 1 Cavity - 1-1/4"	38 mm 32 mm
Square Tube Shear	1/2" to 2" 12 gauge	12 mm to 51 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12 mm, 19 mm, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Offset Die Holder	Max. 40 ton	Max. 36 mt
Strokes per Minute in Light Material	51 spm [Punch Station]	1/4" Stroke
Strokes per Minute in Heavy Material	24 spm [Punch Station]	3/4" Stroke
Hydraulics	2,600 psi	179 bar
Motor Standard	5 hp 208/230/460, 380/575v; 3 ph	3.76 kW
Motor Optional	5 hp 220v, 1 ph	3.76 kW
Dimensions	L: 67-3/4" W: 32" H: 78"	L: 172 cm W: 81.5 cm H: 198 cm
Shipping Weight (may vary)	4,554 lbs.	2,066 kg
