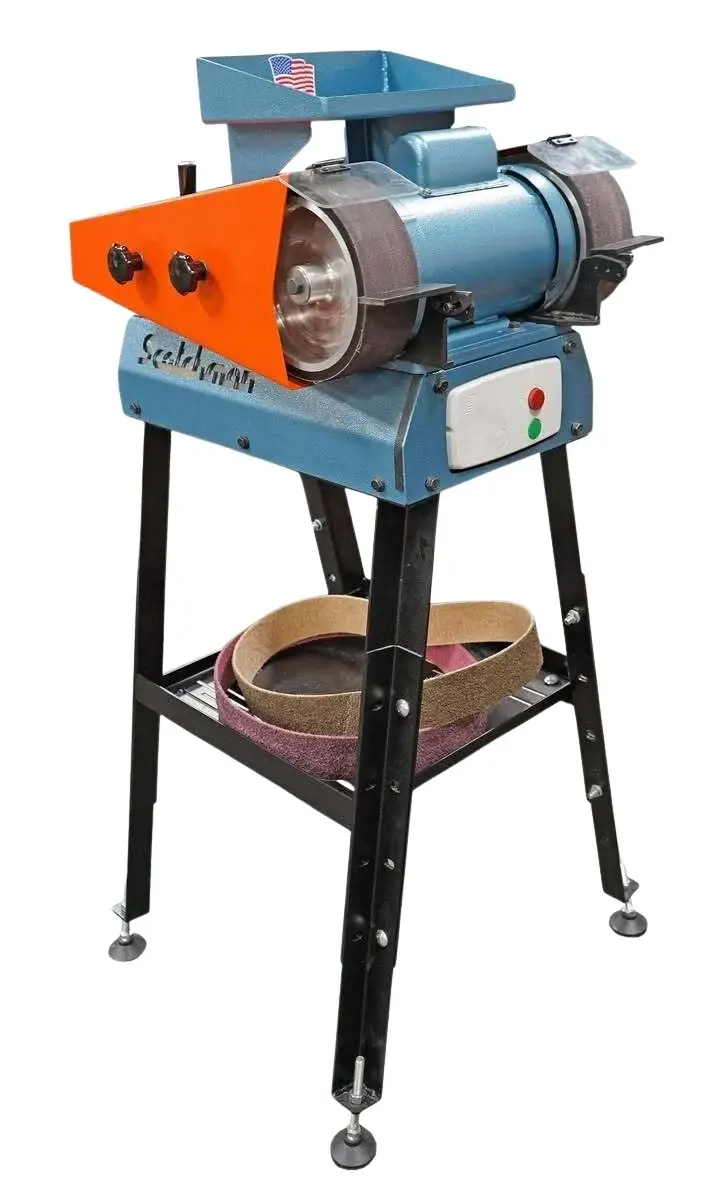

DBS-3 Dual Belt Sander
The Scotchman DBS-3 is a stationary dual belt sander built for fabrication shops that need more power, more precision, and better build quality than a handheld belt sander can deliver. Where handheld power tools require the operator to control both the tool and the material simultaneously, the DBS-3 mounts to an adjustable stand and keeps the sanding process consistent and controlled.
Running two independent 3" x 48" belts at 60 feet per second via a 1.0 HP dual-shaft motor, the DBS-3 handles deburring, weld blending, and precision surface prep on metal with the repeatability that shop-mounted power tools provide over handheld alternatives.
.webp)
The Scotchman DBS-3 is a stationary dual belt sander built for fabrication shops that need more power, more precision, and better build quality than a handheld belt sander can deliver. Where handheld power tools require the operator to control both the tool and the material simultaneously, the DBS-3 mounts to an adjustable stand and keeps the sanding process consistent and controlled.
Running two independent 3" x 48" belts at 60 feet per second via a 1.0 HP dual-shaft motor, the DBS-3 handles deburring, weld blending, and precision surface prep on metal with the repeatability that shop-mounted power tools provide over handheld alternatives.
| Abrasive Belts | One - 3" x 48" sanding belt (36 Grit) |
| One - 3" x 48" finishing belt (Med. Non-Woven) | |
| Motor | 1.0 HP |
| Voltages | 1PH 220V 60Hz |
| Class | NEMA F |
| r/min. | 1750 |
| AMP | 6.3 |
| Power Factor | 0.69 |
| Belt speed | 60 FPS |
| Contact wheel | Ø8" x 3" |
| Weight in lbs | 230 |
| Toolless belt changing/tensioning | |
| Adjustable Stand and Leveling Feet |
